• Specifically designed for applications requiring detection of low temperature hot steel, hot aluminum, hot metal, or hot products as low as 160°C (320°F).
• Programmable 160°C to 460°C IR Threshold Trip Level for Steel and 200°C to 500°C  IR Threshold Trip Trip Level for Aluminum
• Fully Digital "Self-Contained" Design.
• Rear Mounted LED Bar Display of % IR Input Signal
• Operates from 24 VDC Supply
• Optional Supply Input: Universal 80-240VAC & 24 VDC in the same Sensor
• Lens: 0.5° x 25°F.O.V. Rectangular Lens - Standard
• Optional Lens: 0.5° x 5°, 0.5° x 15° F.O.V. Rectangular Lens
• Optional Lens: 2° Spot Lens
• Programmable Response Times from 1ms to 250ms
• Control Relay Output with SPNO contact
• Optional Fast Reed Relay with SPNO contact and 2ms response time
• NPN and PNP Transistor Outputs
• Remote Self-test Facility
• Robust IP66 aluminum housing with water coolant chamber and separate air purge facility.
• Optional Unique Combined Air Purge and Coolant Facility
• Direct Replacement for the MCSL Model MD8100-HG, MD8400, MD84100, and Model MD85100-HG

Typical Applications

• Detection of Hot Metal or Hot Product in a Rod Mill, Bar Mall, Rolling Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot Strip Mill, other Steel Mill or Aluminum Mill Applications and Industrial Applications requiring detection of hot metal or hot product at lower temperatures.
• Steel Mill, Aluminum Mill or other Industrial Applications requiring detection of hot metal or hot product at lower temperatures.

Description

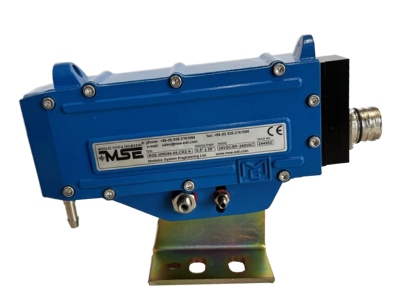

The MSE-HMD84 is a fully digital "All-in-One" Hot Metal Detector uniquely incorporating a bar display showing the % IR input signal relative to the pre-set threshold as well as programmable thresholds and response times via simple programming switch action. This and the universal connection format means it provides the user with one universal Detector that can be used throughout the mill.

The MSE-HMD84 is specifically designed for applications requiring detection of low temperature hot steel, hot aluminum, hot metal, or hot products as low as 160°C (320°F).

The MSE-HMD84 Digital Hot Metal Detector is a robust sensor activated by the infra-red energy radiating from the hot product. Impervious to water or steam it is built to withstand the harshest of environments. The lens incorporates filtering that removes the visible spectrum to minimize sensitivity to extraneous light. For general tracking applications spot lenses are commonly the choice. For applications where the bar bounces or there is strip to be detected, and for precise detection is essential then the 0.5° x 25° FOV lens should be utilized.

This MSE-HMD84 Digital Hot Metal Detector  is especially suitable where ambient temperatures are subject to large changes. In standard housing format, a large air cooled chamber vents via deflector in front of the lens to allow the use of non-instrument air and provides air purging. Alternatively, an optional sealed loop water coolant radiator accommodates tap pressure and a separate air purge inlet may be provided.

The MSE-HMD84 is a direct replacement for the MCSL Model MD8100-HG, MD8400, MD84100, and Model MD85100-HG Hot Metal Detectors. Please contact us for additional information.
