MODULOC offers a extensive variety
of laser measuring solutions for all of your measuring
requirements. Moduloc offers laser distance measurement sensors for
industrial duty applications, overhead crane duty applications, heavy duty
applications, and mill duty
applications including indoor applications and outdoor applications. Moduloc has
laser distance measurement sensors for measuring off of hot product and
hot metal, off of shiny reflective hot surfaces such as molten aluminum
and molten zinc, as well as for measuring off of molten glass and molten
metals as hot as 2200°C (3992°F). Let our measurement experts help you solve your measurement
requirements.
Click images for more information. |
|
|
|
|
| |
 |
 |
MSE-D150 Laser Distance Sensors
(Click Image above for more information.)
Class 2 Laser Distance Sensor
for
General Purpose and Industrial Laser
Distance Measurement Applications
Range: 30 Meters off of Natural Surfaces
100+ Meters off of Special Reflectors
|
MSE-D301 Long Range Laser Distance Sensor
(Click Image above for more
information.)
Class 1 Laser Distance sensor for Short Range to Long
Distance Measurement Applications
IP67 Housing
Range: up to 300 Meters off of Natural Surfaces
Up to 3000 Meters off of Special Reflectors |
 |
 |
MSE-LT150 Laser Distance Sensor
(Click Image above for more information.)
Class 2 Laser Distance Sensor with Robust Steel Mill Duty Housing
Multiple Models Available for Heavy Industrial
and Mill Duty Laser Distance Measurement Applications
Range: Up to 30 Meters off of Natural Surfaces
Up to
100+ Meters off of Special Reflectors
Special Models are available for measuring
off of hot products
Model MSE-LT150HT for hot product temperatures up to 900°C (1652°F)
Model MSE-LT150VHT for hot product temperatures up to 1200°C
(2192°F)
|
MSE-HA08 High Speed Laser Distance Sensor
Class 1 Laser Sensor designed for fast Laser Distance
Measurement Applications
Range: up to 30 Meters off of Natural Surfaces
Up to 250 Meters off of Reflectors
|
 |
 |
MSE-LT205 Laser Distance Sensor
(Click Image above for more information.)
with Robust Mill Duty Dust Proof Aluminum Housing
Multiple Models Available for Heavy Industrial
and Mill Duty Laser Distance Measurement Applications
Range: Up to 30 Meters off of Natural Surfaces
Up to
100+ Meters off of Reflectors
Special Models are available for measuring off of hot
products
Model MSE-LT205HT for hot product temperatures up to 900°C (1652°F)
Model MSE-LT205VHT for hot product temperatures up to 1200°C
(2192°F)
|
MSE-LDD25 Long Range Laser
Distance Sensor
Class 1 Laser for Long Distance
Measurement Applications
Range: 20 to 1300 Meters off of Natural Surfaces
20 to 2500 Meters using Special Reflector |
 |
 |
MSE-LT260 Laser Distance Sensor
with Robust Mill Duty Dust Proof Stainless Steel Housing
Multiple Models Available for Heavy Industrial
and Mill Duty Laser Distance Measurement Applications
Range: Up to 30 Meters off of Natural Surfaces
Up to
100+ Meters off of Reflectors
Special Models are available for measuring off of hot
products
Model MSE-LT260HT for hot product temperatures up to 900°C (1652°F)
Model MSE-LT260VHT for hot product temperatures up to 1200°C
(2192°F) |
MSE-FDL60 High Speed Laser Distance Sensor
Class 1 Laser Sensor designed for fast Laser Distance
Measurement Applications.
IP67 Housing
Range: up to 40 Meters off of Natural Surfaces
Up to 200 Meters off of Reflectors
|
 |
 |
MSE-XT220 Explosion Proof Laser Distance Sensor
(Click Image above for more information.)
Laser Distance Sensor for Explosion Proof Applications
with Cast Aluminum Housing rated Watertight IP66 and NEMA 4X,
plus
Explosion Proof Class I, Groups B, C, D, Class II, Groups E, F,
G,
Class III, NEMA 7BCD, and NEMA 9EFG
Range: Up to 30 Meters off of Natural Surfaces
Up to
100+ Meters off of Reflectors
|
MSE-LOS68 Long Range Laser Distance Sensor
(Click Image above for more information.)
Class 1 Laser Distance Sensor for Short Range to Long
Distance Measurement Applications
IP67 Housing with
Protective Hood and "L" Mounting Bracket
Range: up to 300 Meters off of Natural Surfaces
Up to 3000 Meters off of Reflectors
|
| |
|
|
|
|
 |
Laser Triangulation Measurement Sensors
(Click Image above for more information.)
featuring Laser Triangulation Measurement Sensors from Danish Sensor Engineering
(DSE)
Extremely
Accurate Laser Distance Measurement by laser triangulation, ideal for Precision Applications
Advanced Laser Triangulation and CCD array technique with digital signal processing
Over 25 models available with minimum working ranges down to 16mm and maximum working range up to 4 meters
High Temperature Models available that can be used with hot or molten metal
up to 1000°C (1832°F), 1300°F (2372°F), 1500°C (2732°F), and 2200°C (3992°F).
Special customization for measuring off of shiny materials such as
molten aluminum, molten zinc, and measuring off of molten glass.
|
|
|
 |

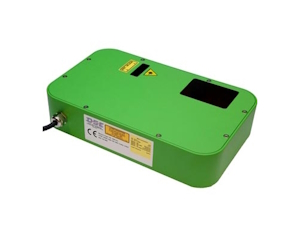

2D Laser Laser Profile Scanners
(Click Image above for more information.)
featuring two Dimensional Laser Profile Scanners from Danish Sensor Engineering
(DSE)
EDSE O2DS Z-Line Laser Profile Scanners is a series of
laser scanners that specialize in performing profile measurement in 2D.
The measurement is achieved by oscillating the triangulation plane over
an angle, with a maximum specified angle of 50°. These scanners utilize
a fine collimated or focused laser beam that diffusely reflects from the
surface of various objects. Through the use of a CCD camera and a
Digital Signal Processor, the scanners accurately determine the radial
distance from the mirror axis to the target surface and maintain the
angular reference position.
8 models available with minimum radial working range up to
2.4 meters
High Temperature Models available that can be used with hot
products, hot metal or molten metal
up to 1000°C (1832°F), 1300°F (2372°F), 1500°C (2732°F), and 2200°C (3992°F).
|
|
|
