MODULOC MSE-LT205 Laser Distance Measurement Sensors
|
|
|
|
|
 |
 |
 |
|
Model MSE-LT205 Laser
Distance
Measurement Sensor for measuring targets with
temperatures up to 600°C (1112°F) shown with a supplied
Horizontal
Mounting Bracket and an standard
front protective tube
|
Model MSE-LT205HT Laser
Distance
Measurement Sensor for measuring targets with
temperatures up to 900°C (1652°F) shown with a supplied
Horizontal Mounting Bracket
and an optional Extended front protective tube with air purge. An optional extended
front protective tube without air purge is shown as well.
|

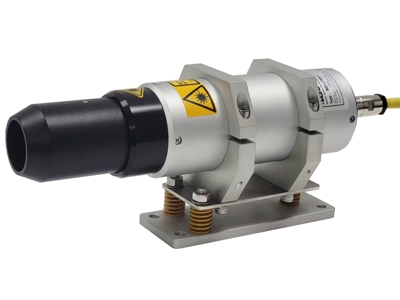

Model MSE-LT205VHT Laser
Distance
Measurement Sensor for measuring targets with
temperatures up to 1200°C (2192°F) shown with a supplied
Horizontal Mounting Bracket
and an optional Extended front protective tube without air purge.
|
|
|
|
|
|
The MODULOC MSE-LT205 is provided
with the latest laser measurement technology for precise, reliable and
accurate distance measurement.
The heavy-duty and rugged MSE-LT205 is available in 3
different target temperature models. The standard
model MSE-LT205 for measuring targets with temperatures up
to 600°C (1112°F) , the model MSE-LT205HT for measuring targets with
temperatures up to 900°C (1652°F), and the model MSE-LT205VHT for measuring
targets with temperatures up to 1200°C (2192°F).
All of the
MSE-LT205
models are
provided with a programmable 4-20mA Analog Output, a programmable
Digital Output, a programmable Offset, a programmable External Trigger
Input.
An RS232 Serial Interface is supplied as standard and an
optional RS422/RS485 Serial Interface is available. The RS485 allows up
to 32 sensors, each with a unique address to be connected in a multi-drop
network arrangement. All of the MSE-LT205 models can also be supplied with a Profibus
Interface, a Profinet Interface, or an Ethernet TCP/IP Interface.
Optional ancillary equipment include an external ProfiBus DP Gateway
Interface Box, an external ProfiBus DP interface box, an external
ProfiNet interface box, an external DeviceNet interface box, an external
Ethernet TCP/IP interface box, an external Ethernet/IP Interface box,
various Junction Boxes, and AC to DC Power Supplies. Also available is
an HMI/Controller that allows connection and communication with one (1)
or two (2) MSE-LT205 Laser Distance Measurement Sensors for
programming and displaying of distance measurement, length measurement,
product presence. or product position, and with (2) lasers connected can
be used to calculate and display the width, length or thickness of hot
or cold product.
All of the
MSE-LT205 models are provided in a field proven robust heavy-duty industrial
and mill duty aluminum housing. The housing is provided with a horizontal mounting bracket. The
standard housing is supplied without cooling or air purging. Standard
operating temperature without cooling is -20°C (-4°F) to +50°C (122°F).
An optional water cooled jacket can be provided for an operating
temperature up to 100°C (212°F). An optional internal heater can be
provided for low temperature applications down to -40°C (-40°F). Other
accessories include a wall mounting bracket, a gray filter, a front
extension tube with an air purge inlet, a long front extension tube to
limit radiant IR interference, a heat reflective shield, a sun shield
for outdoor applications, a Kevlar heat reflective cover, a vortex
inline air cooling tube, and air filters.
The MSE-LT205
is ideal for use in steel mills and other heavy duty industrial
locations where an easy to use, reliable and rugged heavy-duty
Laser Distance Measurement Sensor is required.
Let our measurement experts help you solve your measurement
requirements.
|
|
|

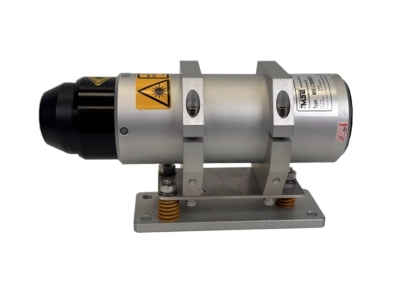

Model MSE-LT205 Laser Distance Measurement Sensor - target temperatures up to 600°C |
|
Model MSE-LT205 Laser
Distance
Measurement Sensor shown with a supplied
Horizontal
Mounting Bracket and an standard
front protective tube
|
|
- Visible class II laser providing accurate and precise distance
measurement.
- Operates off natural surfaces up to 30 meters (98 feet), off a
white target at 100 meters (328) and off a special reflector target
at 140 meters (460 feet).
- Provides ±3mm (±0.118in) to ±5mm (±0.197in) accuracy.
- Low in cost, yet long range.
- RS232 or RS422/RS485 Serial Interface.
- Programmable 4 - 20mA Analog Output.
- Programmable Zero and Distance Offset.
- Programmable Digital Output.
- Programmable External Trigger Input.
- Robust Mill-Duty aluminum housing rated IP66
- Optional Cooling jacket for Water Cooling or Vortex Air cooling
- Optional Extended Front Tube with or without air purge.
Typical Applications
- Product: Material Length, width, level and position of
product.
- Material Handling: Automated storage/retrieval systems and
positioning of mobile equipment.
- Metals Industry: Coil diameter, Measure and/or position slab, billet, bloom or bar,
Slab Width Measurement, Slab Length Measurement, Slab
Thickness Measurement.
- Crane Control: Positioning of cranes & crane trolleys.
- Collision Avoidance: Distance alarm between vehicles using
reflective target
|
|
Click for more information on the MSE-LT205
Laser Distance Measurement Sensor
|
|
|
|
|
Model MSE-LT205HT Laser Distance Measurement
Sensor - target temperatures up to 900°C |

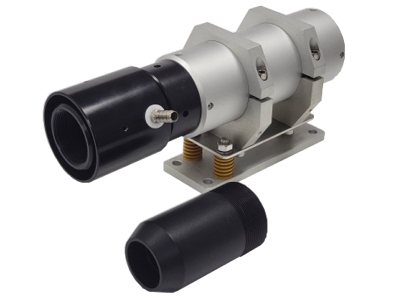

Model MSE-LT205HT Laser
Distance
Measurement Sensor shown with a supplied
Horizontal Mounting Bracket
and an optional Extended front protective tube with air purge. An optional extended
front protective tube without air purge is shown as well.
|
|
- Visible Class II red laser providing accurate and precise distance measurement.
- Operates off hot natural surfaces up to up to 900°C (1652°F).
- up to 20 meters (65.6 feet).
- Provides ±1mm (±0.039in) to ±2mm (±0.079in) accuracy.
- RS232 or RS422/RS485 Serial Interface.
- Programmable 4 - 20mA Analog Output.
- Programmable Zero and Distance Offset.
- Programmable Digital Output.
- Programmable External Trigger Input.
- Optional Cooling jacket for Water Cooling or Vortex Air cooling
- Optional Extended Front Tube with or without air purge.
Typical Applications
- Product: Material Length, width, level and position of hot product.
- Metals Industry: Hot coil diameter, Measure and/or position hot slab, billet, bloom or bar,
Hot Slab Width Measurement, Hot Slab Length Measurement, Hot Slab
Thickness Measurement up to 900°C (1652°F).
|
|
Click for more information on the MSE-LT205HT
Laser Distance Measurement Sensor
|
|
|
|
|
Model MSE-LT205VHT Laser Distance Measurement
Sensor - target temperatures up to 1200°C
|
|

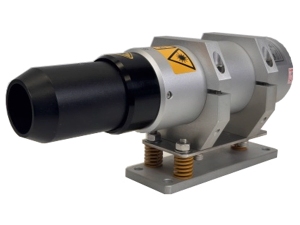

Model MSE-LT205VHT Laser
Distance
Measurement Sensor shown with a supplied
Horizontal Mounting Bracket
and extended front tube
|
|
- Visible Class II red laser providing accurate and precise distance measurement.
- Operates off hot natural surfaces up to up to 1200°C (2192°F).
- up to 20 meters (65.6 feet).
- Provides ±1mm (±0.039in) to ±2mm (±0.079in) accuracy.
- RS232 or RS422/RS485 Serial Interface.
- Programmable 4 - 20mA Analog Output.
- Programmable Zero and Distance Offset.
- Programmable Digital Output.
- Programmable External Trigger Input.
- Robust Mill-Duty aluminum housing rated IP66
- Optional Cooling jacket for Water Cooling or Vortex Air cooling
- Optional Extended Front Tube with or without air purge.
Typical Applications
- Product: Material Length, width, level and position of hot product.
- Metals Industry: Hot coil diameter, Measure and position hot slab, billet, bloom or bar,
Hot Slab Width Measurement, Hot Slab Length Measurement, Hot Slab
Thickness Measurement up to 1200°C (2192°F).
|
|
Click for more information on the MSE-LT205VHT
Laser Distance Measurement Sensor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
