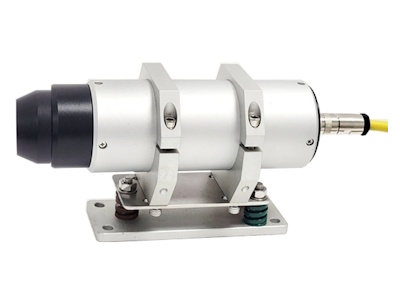

MSE-LT205 Laser Distance Measurement Sensor

• Visible class II laser providing accurate and precise distance measurement.
• Operates off natural surfaces up to 30 meters (98.6 feet), off a white target at 100 meters (328 feet) and off a special reflector target at 140 meters (460 feet)
• Provides ±3mm (±0.118in) to ± 5mm (±0.197in) accuracy.
• Operates from 10- 30 VDC Supply
• RS232 or Optional RS422/RS485 Serial Interface.
• Optional ProfiBus, ProfiNet or Ethernet TCP/IP Interface is also available.
• Programmable 4 - 20mA Analog Output.
• Programmable Digital Output
• Programmable External Trigger Input.
• Programmable Zero Offset.
• Rugged and heavy duty cylindrical aluminum housing rated IP66.
• Standard Mounting Brackets and optional Mounting Platforms are available.
• Optional Internal 24VDC Heater for operation down to -40°C (-40°F)
• Optional water cooling, vortex air cooling, air purging,  and extended front tubes are available.

Typical Applications

• Product Material: Length, width, level and position of product.
• Material Handling: Automated storage/retrieval systems and positioning of mobile equipment.
• Metals Industry: Measure/position slab, billet, bloom or bar.
• Crane Control: Positioning of crane bridges and crane trolleys.
• Collision Avoidance: Distance alarm between vehicles.

Description

The MSE-LT205 Laser Distance Measurement Sensor operates over a substantial range off static or passing product in difficult areas in harsh hazardous and outdoor environments. The MSE-LT205 measures distances over a working range up to 30  meters off of natural surfaces, up to 100 meters off of white surfaces and up to 140 meters off of a special reflector. For operation with automated positioning control of material handling transport systems a white reflective target is used or the special reflector is used.
