MODULOC Hot Metal Detectors
MODULOC offers the latest technology for precise high speed
monitoring of hot product regardless of size, profile or temperature.
There are (6) Six models of
Digital Hot Metal Detectors available to suit
your particular mill requirements.
The Model MSE-HMD84 Digital "All-in-One" Hot
Metal Detector Sensor for low product temperature applications, the
Model MSE-HMD85 Digital "All-in-One" Hot Metal Detector Sensor, the Model MSE-HMD95 Digital Remote Lens Hot Metal Detector
Sensor using fiber optic cables and remote lenses, the Model
MSE-HMD100 Digital "All-in-One" Hot Metal Detector Sensor in a
cylindrical stainless steel housing, the Model PF100 Pathfinder Digital Scanning Hot Metal Detector, and
the MSE-RT20 Cold Metal and Hot Metal Detector Retro-Reflective Laser Barrier.
|
|
|

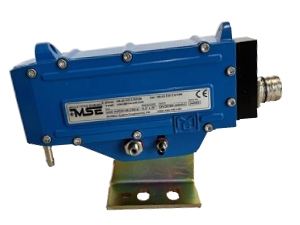

Model MSE-HMD84 Low Temperature Digital Hot Metal Detector (HMD) Sensor
|
|
Model MSE-HMD84 All-in-One self-Contained Hot Metal Detector Sensor shown with supplied "L" Mounting Bracket
|
|
- Specifically designed for applications requiring detection of
low temperature hot steel, hot aluminum, hot metal, or hot products
as low as 160°C (320°F)
- Programmable 160°C to 460°C IR Threshold Trip Level for Steel
and 200°C to 500°C IR Threshold Trip Trip Level for Aluminum
- Solid State Digital "All-in-One" Design - programmable.
- Excellent steam penetration
- LED Bar Display of % IR Input Signal
- Supply Voltage: 24 VDC Supply (Standard)
- Optional Supply Voltage: Universal 80-240VAC & 24 VDC in the same Sensor
- Lens: 0.5° x 25°F.O.V. Rectangular Lens - Standard
- Optional Lens: 0.5° x 5°, 0.5° x 15° F.O.V. Rectangular Lens
- Optional Lens: 2° Spot Lens
- Programmable Response Times from 1ms to 250ms
- Control Relay Output with SPNO contact
- Optional Fast Reed Relay with SPNO contact with 2ms response time
- NPN and PNP Transistor Outputs
- Remote Self-test Function
- Cast Aluminum Housing with integrated water cooling and air
purge facility.
- Optional Cooling: Unique "combined" air cooling & air
purge facility.
Typical Applications
- Detection of Hot Aluminum, Hot copper, or Hot Brass in a Rod Mill, Bar Mall, Rolling
Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot
Strip Mill, other Steel Mill or other Mill Applications where the
temperature of the Hot Metal is generally below 800°C and Industrial Applications
requiring detection of hot metal or hot product at lower temperatures.
|
|
Click for more information on the MSE-HMD84 Digital Hot Metal Detector (HMD) Sensor
|
|
|
|
|
Model MSE-HMD85 Digital Hot Metal Detector (HMD) Sensor
|
|
Model MSE-HMD85 All-in-One self-Contained Hot Metal Detector Sensor shown with supplied "L" Mounting Bracket
|
|
- Programmable 270°C to 1000°C IR Threshold Trip Level
- Solid State Digital "All-in-One" Design - programmable.
- Excellent steam penetration
- LED Bar Display of % IR Input Signal
- Supply Voltage: 24 VDC Supply (Standard)
- Optional Supply Voltage: Universal 80-240VAC & 24 VDC in the same Sensor
- Lens: 0.5° x 25°F.O.V. Rectangular Lens - Standard
- Optional Lens: 0.5° x 5°, 0.5° x 15° F.O.V. Rectangular Lens
- Optional Lens: 2° Spot Lens
- Programmable Response Times from 1ms to 250ms
- Control Relay Output with SPNO contact
- Optional Fast Reed Relay with SPNO contact with 2ms response time
- NPN and PNP Transistor Outputs
- Remote Self-test Function
- Cast Aluminum Housing with integrated water cooling and air
purge facility.
- Optional Cooling: Unique "combined" air cooling & air
purge facility.
Typical Applications
- Detection of Hot Metal or Hot Product in a Rod Mill, Bar Mall, Rolling
Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot
Strip Mill or other Steel Mill Applications and Industrial Applications
requiring detection of hot metal or hot product.
|
|
Click for more information on the MSE-HMD85 Digital Hot Metal Detector (HMD) Sensor
|
|
| |
|

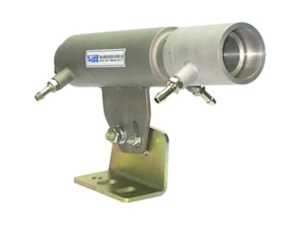

Model MSE-HMD100 Digital Hot Metal Detector (HMD) Sensor
|
|
Model MSE-HMD100 All-in-One self-Contained Hot Metal Detector Sensor shown with supplied "L" Mounting Bracket
|
|
- Solid State Digital "All-in-One" Design - programmable.
- Programmable 270°C to 1000°C IR Threshold Trip Level
- Excellent steam penetration
- LED Bar Display of % IR Input Signal
- Supply Voltage: 24 VDC Supply (Standard)
- Lens: 1° x 12° F.O.V. Rectangular Lens - Standard
- Optional Lens: 1° x 5° Rectangular Lens
- Optional Lens: 2° Spot Lens
- Programmable Response Times from 1ms to 250ms
- Control Relay Output with SPNO contact
- NPN and PNP Transistor Outputs
- Remote Self-test Function
- Stainless Steel Cylindrical Housing with Separate Air Purge
facility.
- Optional Cooling: Integrated Water/Air Cooling with Separate Air
Purge facility.
Typical Applications
- Detection of Hot Metal or Hot Product in a Rod Mill, Bar Mall, Rolling
Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot
Strip Mill, other Steel Mill or Aluminum Mill Applications and Industrial Applications
requiring detection of hot metal or hot product at lower temperatures.
|
|
Click for more information on the MSE-HMD100 Digital Hot Metal Detector (HMD) Sensor
|
|
| |
|

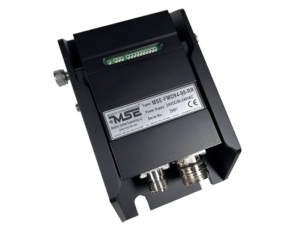

Model MSE-FMD94 Digital Fiber Hot Metal Detector HMD) Sensor with Remote Lenses
|
Model MSE-MD94 Hot Metal Detector Sensor
Signal Process Controller shown with mounting cradle, fiber optic cable and remote tubular spot lens
Remote Optic Head and Holder which includes a Stainless Steel Tubular Spot Lens
with either a 1°C or 7° FOV. Both are fabricated from Stainless
Steel and have a temperature ratings of 600°C. The high temperature
ratings allow the remote lens to get very close to the hot product.
|
|
- Specifically designed for applications requiring detection of
low temperature hot steel, hot aluminum, hot metal, or hot products
as low as 160°C (320°F)
- Programmable 160°C to 460°C IR Threshold Trip Level for Steel
and 200°C to 500°C IR Threshold Trip Trip Level for Aluminum
- Solid State Digital Design - Programmable
- Excellent Steam Penetration
- LED Bar Display of % IR Input Signal
- Supply Voltage: 24 VDC Supply (Standard)
- Optional Supply Voltage: Universal 80-240VAC & 24 VDC in the same Sensor
- Standard Remote Optic Head with 1° Quartz Spot Lens - rated at
600°C
- Optional Remote Optic Head with 7° Quartz Spot Lens - rated at
600°C
- Standard Remote Optic Head with 0.5° x 25° F.O.V. Precision Slit
Rectangular Lens - rated at 120°C/150°C/200°C
- Optional Remote Optic Head with 0.5° x 5°, 0.5° x 15°
F.O.V. Precision Slit Rectangular Lens rated at
120°C/150°C/200°C
- Optional Remote Optic Head with 1° Quartz Spot Rod Lens - rated
at 1000°C for mounting under the line
- Programmable Response Times from 1ms to 250ms
- Control Relay Output with SPNO contact
- Optional Fast Reed Relay with SPNO contact with 2ms response time
- NPN and PNP Transistor Outputs
- Remote Self-test Function
- Utilizes Stainless Steel Sheathed Flexible High Temperature Fiber Optic Cables, available
in lengths from 2m to 10m, rated at 400°C or optional rated at 1000°C
- Robust Optic Head Holders, Stainless Steel Construction with Air Purged rated at 600°C
or 1000°C
- Remote Optic Head with Precision Slit Rectangular lens are cast aluminum housings
with either Air Purged & Air Cooled
rated 120°C to 150°C, or Water Cooled or Cortex Air Cooled with separate Air Purged rated to 200°C
using chilled water.
Typical Applications
- Detection of Hot Aluminum, Hot copper, or Hot Brass in a Rod Mill,
Bar Mall, Rolling Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot
Strip Mill, other Steel Mill or other Mill Applications where the
temperature of the Hot Metal is generally below 800°C and Industrial
Applications requiring detection of hot metal or hot product at lower
temperatures.
|
|
Click for more information on the MSE-FMD94 Remote Digital Hot Metal Detector (HMD) Sensor
|
|
|
|
|
Model MSE-FMD95 Digital Fiber Hot Metal Detector HMD) Sensor with Remote Lenses
|
Model MSE-MD95 Hot Metal Detector Sensor
Signal Process Controller shown with mounting cradle, fiber optic cable and remote tubular spot lens
Remote Optic Head and Holder which includes a Stainless Steel Tubular Spot Lens
with either a 1°C or 7° FOV. Both are fabricated from Stainless
Steel and have a temperature ratings of 600°C. The high temperature
ratings allow the remote lens to get very close to the hot product.
|
|
- Programmable 270°C to 1000°C Trip Level
- Solid State Digital Design - Programmable
- Excellent Steam Penetration
- LED Bar Display of % IR Input Signal
- Supply Voltage: 24 VDC Supply (Standard)
- Optional Supply Voltage: Universal 80-240VAC & 24 VDC in the same Sensor
- Standard Remote Optic Head with 1° Quartz Spot Lens - rated at
600°C
- Optional Remote Optic Head with 7° Quartz Spot Lens - rated at
600°C
- Standard Remote Optic Head with 0.5° x 25° F.O.V. Precision Slit
Rectangular Lens - rated at 120°C/150°C/200°C
- Optional Remote Optic Head with 0.5° x 5°, 0.5° x 15°
F.O.V. Precision Slit Rectangular Lens rated at
120°C/150°C/200°C
- Optional Remote Optic Head with 1° Quartz Spot Rod Lens - rated
at 1000°C for mounting under the line
- Programmable Response Times from 1ms to 250ms
- Control Relay Output with SPNO contact
- Optional Fast Reed Relay with SPNO contact with 2ms response time
- NPN and PNP Transistor Outputs
- Remote Self-test Function
- Utilizes Stainless Steel Sheathed Flexible High Temperature Fiber Optic Cables, available
in lengths from 2m to 10m, rated at 400°C or optional rated at 1000°C
- Robust Optic Head Holders, Stainless Steel Construction with Air Purged rated at 600°C
or 1000°C
- Remote Optic Head with Precision Slit Rectangular lens are cast aluminum housings
with either Air Purged & Air Cooled
rated 120°C to 150°C, or Water Cooled or Cortex Air Cooled with separate Air Purged rated to 200°C
using chilled water.
Typical Applications
- Detection of Hot Steel, Hot Metal, or Hot Product in a Continuous
Caster, Hot Rod Mill, Hot Bar Mall,
Hot Rolling Mill, Hot Plate Mill, Hot Roughing Mill, Hot Reversing Mill,
Hot Hot Strip
Mill or other Steel Hot Mill, Forging Plant, Foundry or Industrial Applications requiring
detection of hot metal or hot product.
|
|
Click for more information on the MSE-FMD95 Remote Digital Hot Metal Detector (HMD) Sensor
|
|
|
|
|
MSE-PF100 Digital Scanning Hot Metal Detector (SHMD)
|
|
MSE-PF100 Digital Scanning Hot Metal Detector
shown with supplied "L" Mounting Bracket
|
|
- Solid State Digital Design - Programmable - utilizing the latest microprocessor technology
- Digital Scanning - No motor driven rotating mirror - with a scan rate of 1200 times per second
- Precise reliable detection of Hot Metal or Hot Product at 300°C and above.
- Operates by signal comparison - Background IR is Suppressed
- Hot scale in Field Of View (FOV) is ignored
- Dirty lens & steam has no effect on threshold
- Supply Voltage: 24 VDC Supply (Standard)
- Optional Supply Voltage: Universal 80-240VAC & 24 VDC in the same Sensor
- FOV Scanning Angles: 1° x 15°
- Bar Display of Product Position
- 1 - 250 ms programmable response time
- Continuous & Remote Self-Test functions
- Control Relay Output with SPNO contact, and Fast Opto-isolated NO AC output
- PNP & NPN Switch Selectable Transistor Output
- Cast Aluminum Housing with integrated water cooling and air
purge facility.
- Optional Cooling: Unique "combined" air cooling & air
purge facility.
Typical Applications
- General: Detection of Hot Metal or Hot Product at 300°C and above.
- Hot Strip Mill, Plate Mill, Roughing Mill, Rolling Mill, Reversing Mill: Detection of
Hot Metal or Hot Product as well detection Head End
&Tail End.
- Hot Rod & Bar Mill: Detection of Hot Metal or Hot Product as
well as detection Head End and Tail End.
|
|
Click for more information on the MSE-PF100
Digital Scanning Hot Metal Detector (SHMD)
|
|
|
|
|
MSE-RT20 Cold and Hot Metal Detector Retro-Reflective Through Beam Laser Barrier
|
|
The MSE-LT20 Cold and Hot Product Detector
Retro-Reflective Laser
Barrier is available with either air coolant
chamber
venting as air purge or alternatively with a
water coolant
chamber and separate air purge. Shown
with supplied "L" mounting
bracket
REF-2HT Reflector with Air Purged & Cooling
Rating: 140°C without air cooling
180°C with air cooling
|
|
- Solid State Digital Design - Programmable - utilizing the latest microprocessor technology
- Visible retro-reflective laser thru-beam Sensor
- 0.1 (0.33FT) to >20 meter (65.6FT) range
- Detects hot or cold product
- Operates off a prism reflector detecting as small as 3 mm C.S.A. product
- Edge resolution of 3mm per Meter
- IR filtering enables use in furnace entry door
- Class II visible laser light
- Continuous self-check with LED indication of contaminated lens
- Control Relay Output with SPNO/SPNC Form C contacts
- NPN & PNP Transistor Outputs.
- Supply Voltage: 24 VDC Supply
- Cast Aluminum Housing with integrated water cooling and air
purge facility.
- Optional Cooling: Unique "combined" air cooling & air
purge facility.
- Multiple reflectors available for General Purpose to High Temperature Mill Duty applications
Typical Applications
- Furnace Door Monitoring: For prevention of product collision with furnace door.
- Photo-Switch Replacement: Highly reliable retro-reflective through beam sensor
- Metals Industry: Detection of hot and cold product
|
|
Click for more information on MSE-RT20 Cold and Hot Metal Detector
Retro-Reflective Laser Barrier
|
|
|
|
|
|
|
|
|
|
|
|
