MSE-SD60A Laser Level Sensor
|
MSE-AL30 Molten Aluminum Laser Level Sensor
|
Capable of measuring 2000 times per
second. Suitable for general
distance measurement applications.
Shock- and impact-resistant IP 65
housing suitable for use in harsh
industrial environments.
Measurement Range: up to 25m off of
natural surfaces. Up to 120 using a
suitable reflector
Measurement
Accuracy: Typical value: ±6cm
|
Specifically designed to measure the
level of molten aluminum level under
various working conditions. Used to
display and provide feedback for
closed-loop control of molten
aluminum level.
Measurement
Range: 0.1 m up to 5 m
Measuring
accuracy ±1mm ( with good surface,
with stabile reflection ) |
 |
 |
|

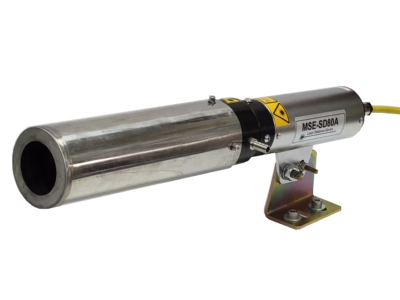

MSE-SD80A Laser Level Sensor
|
MSE-GL30 Molten Glass Laser Level
Sensor
|
Capable of measuring 100 times in 1
second and is suitable for
general
distance measurement applications.
Measurement Principle: Time of
flight method
Measurement Range:
On targets with a reflectivity ≥
20%,
0.6m … 25m (depending on the
target reflectivity, ambient light
and atmospheric conditions)
Measurement accuracy Typical value:
±6cm
(for single measurement 1
sigma, statistical distribution is
95%) |
Used
to measure the liquid level of
molten glass and control the
liquid level of glass in a closed
loop control system.
Measurement
Range: 0.1 to 10 Meters
Measurement Accuracy: 0.5mm
|
 |
 |
|
MSE-ML30 Laser Level Sensor
|
MSE-GL100 Molten Glass Laser Level Sensor
|
Robust Mill Duty Dust Proof
Cast Aluminum Housing
Application: Material level
measurement, used to display and
control material level
Measuring
Range: 0.1-30m (natural object
surface)
Measurement Accuracy:
±2mm (white surface)
|
Specifically designed to measure the
level of molten glass under various
working conditions.
Used to
display and provide feedback for
closed-loop control of molten glass
level.
Measurement Range: 0.1 to
10 Meters
Measurement Accuracy:
<0.5mm
|
 |
|
|
MSE-DLLS
Digital Laser Level Sensor
|
|
Robust Mill Duty Stainless Steel Housing
Precise Molten Metal Level Control
for
Launders, Troughs and Head Boxes.
Applications:
Aluminum Casting Industry - Die Cast Aluminum
Molders
Lead, Brass and Copper Foundries -
Iron and Steel Plants.
Operates off mirror
like surfaces regardless of angle.
Advanced
Laser Triangulation and CCD array technique with
digital signal processing
Many models available with maximum working range up to 4 meters
High Temperature Models available that can be used with hot or molten metal up to 1000°C (1832°F), 1300°F (2372°F), 1500°C (2732°F), and 2200°C (3992°F).
Direct Replacement for the MODULOC MDCLS Digital Camera Level Sensors |
|
| |
|
|
