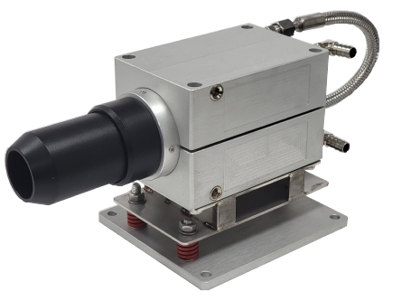

Model MSE-LT205 Laser Distance Measurement Sensor for Heavy Duty applications shown with water optional cooled jacket

The MSE-LT205 Laser Distance Measurement Sensor mounted on a supplied Horizontal Mounting Bracket and shown with an optional water cooled jacket and an optional extended protective tube.

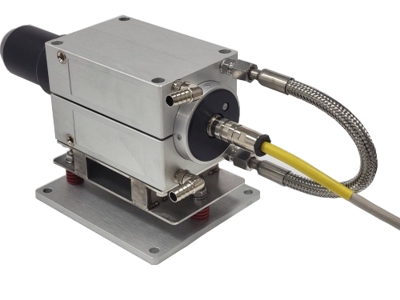

Model MSE-LT205 Laser Distance Measurement Sensor for Heavy Duty applications shown with water optional cooled jacket

Back view of the  MSE-LT205 Laser Distance Measurement Sensor mounted on a supplied Horizontal Mounting Bracket and shown with an optional water cooled jacket and an optional extended protective tube.

MSE-LT205 Laser Distance Measurement Sensor

Housing Technical Information

The following is specifications and dimensional information on the housing for the Moduloc MSE-LT205 Laser Distance Measurement Sensor.

The standard  MSE-LT205 is provided in a heavy duty, mill duty, robust dust and waterproof protected IP66 housing. On the backside of the housing is mounted an IP66 rated 12 Pin M16 Male box connector.  The standard operating temperature range is -20°C (-4°F) to +50°C (122°F) an optional internal PTC heater is available for operation down to -40°C (-40°F).

An optional water cooled jacket can be provided to allow operating temperature up to 100°C (212°F). Further cooling can be accomplished with the use of an an optional in-line vortex tube air cooler in place of water cooling.  An optional Modular Air Combination Unit is available that includes a pressure relief valve, an air filter with 5 μm filtration, a coalescing filter with 0.01 μm filtration and an adjustable pressure regulator.

Other optional accessories are available for the housing including a heat reflective shield, a Kevlar heat reflective protective cover, and a sun shield for outdoor applications.

The heat reflective protective cover is custom fabricated and is made with Eko-Therm™ aluminized Kevlar with high temperature construction and high temperature Velcro® closures. The cover provides a unique combination of thermal insulation and heat reflective qualities. It helps maintain cooling process line temperatures in high ambient conditions or alongside external radiating heat sources. The cover is constructed in 3 layers to provide maximum insulation properties to meet or exceed maximum temperature requirements

Other accessories include a wall mounting bracket, a front extension tube with an air purge inlet, and a long front extension tube to limit radiant IR interference, and a gray filter to limit sunlight that attaches to the front of the standard and the optional front tubes.

The standard the MSE-LT205 is supplied with a cable assembly which includes a mating M16, IP66 rated 12-pin female plug, and a 12 conductor color coded cable with flying leads. The standard cable length is 2 meters. The cable assembly is also available in optional lengths of 5, 10 and 15 meters.

The MSE-LT205  with its' heavy duty, mill duty, robust IP66 housing is ideal for steel mill applications that require a very rugged housing for protection.





Housing Specifications
Housing Material
Aluminum AL6, Finish: Natural with stainless steel hardware
Housing Rating
 IEC IP66, DIN 89011
Weight
1.9 g (4.2LB)  without cable and with standard housing and front tube.
Front Tube Material
Aluminum, Finish: Black paint
Mounting Bracket Material
Aluminum, Finish: Natural with stainless steel hardware
Electrical Connection
M16, 12-Pole Flange Mount Circular Connector
Cable Length:
2.0 m (optional 5, 10 and 15m are available)
Cable Part Number:
MSECBP10LXXLT205 Where XX = cable length of 02=2m, 05=5m, 10=10m, and 15=15m,  for use when the RS232 or RS422/RS485 Serial Interface is supplied

Housing Dimensions

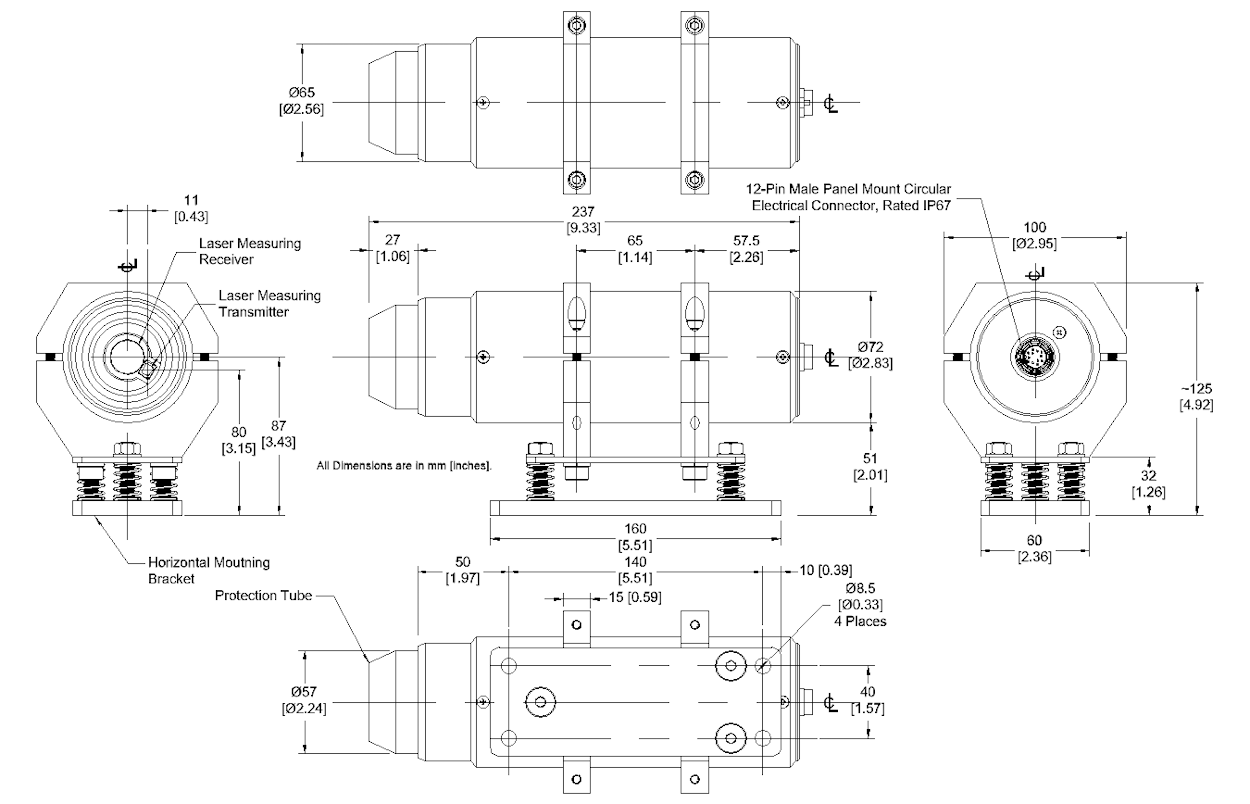

MSE-LT205 Laser Distance Measurement Sensor Housing Dimensional Imformation



Electrical Connection Information

Terminal Connections
Pin No.
Wire Color
Designation
Function  if RS232
Function if RS422/RS485
A
Green
TxD / RX+
RS232 send data
RS422 receive data +
B
Yellow
RxD / RX-
RS232 receive data
RS422 receive data
C
Brown
TRIG
External Trigger
External Trigger
D
Red
IOUT
Analog Current Output
Analog Current Output
E
Black
TX-
Not Used
RS422 send data
F
Violet
TX+
Not Used
RS422 send data +
G
Pink
VCC
Supply Voltage
Supply Voltage
H
White
ALARM
Digital switching output
Digital switching output
J
Gray
GND
Ground Potential (Signal)
Ground Potential (Signal)
K
No Connection
No Connection - Not Used
No Connection
No Connection - Not Used
L
Blue
GND
Ground Potential (Supply)
Ground Potential (Supply)
M
No Connection
No Connection - Not Used
No Connection
No Connection - Not Used
---
Yellow/Green
Shield
Shield/Screen
Shield/Screen




Part Number Specifications

Example #1: MSE-LT205-1-H
(Laser Distance Measurement sensor with RS232 Serial Interface, and with 24VDC Heater)
Example #2: MSE-LT205-2
(Laser Distance Measurement sensor with RS422 Serial Interface)

Serial Interface::

-1

= RS232 Serial Interface (Standard)


-2

= RS422 Serial Interface (Optional)

Internal Heater:



= No Additional Suffix then Optional Heater is not included (Standard)


-H

= Internal 24 VDC PTC Heater is included (Optional)


NOTE: The Internal Heater is programmable and can be switched on and off between a temperature range of -40°C and 70°C (-40°F to 158°F) is controlled by a programmable software parameter.



Please contact us for additional information on Model Numbers for other FieldBus Interface Options, water or vortex air cooling options, air purging options, various extended front tube options, and front filter options.
