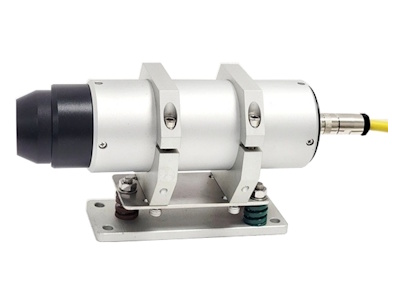

MSE-LT205HT Laser Distance Measurement Sensor for Measuring off Hot Surfaces as hot as 900°C (1652°F)

• Visible class IIIR (3R) laser providing accurate and precise distance measurement.
• Operates off natural surfaces up to 20 meters (65.6 feet) off hot material up 900°C (1652°F)
• Provides ±1mm (±0.039in) to ± 2mm (±0.079in) accuracy.
• Operates from 10- 30 VDC Supply
• RS232 or Optional RS422/RS485 Serial Interface.
• Optional ProfiBus, ProfiNet or Ethernet TCP/IP Interface is also available.
• Programmable 4 - 20mA Analog Output.
• Programmable Digital Output
• Programmable External Trigger Input.
• Programmable Zero Offset.
• Rugged and heavy duty cylindrical aluminum housing rated IP66.
• Standard Mounting Brackets and optional Mounting Platforms are available.
• Optional Internal 24VDC Heater for operation down to -40°C (-40°F)
• Optional water cooling, vortex air cooling, air purging,  and extended front tubes are available.

Typical Applications

• Product:  Material Length, width, level and position of hot product.
• Metals Industry: Measure/position hot slab, billet, bloom or bar
• Metals Industry: Hot Slab Width Measurement, Hot Slab Length Measurement, Hot Slab Thickness Measurement up to 900°C (1652°F).

Description

The MSE-LT205HT Laser Distance Measurement Sensor operates over a substantial range off static or passing hot material or  product in difficult areas in harsh hazardous and outdoor environments.

The MSE-LT205HT measures distances over a working range up to 20 meters (65.6 feet) off of hot natural surfaces that are as hot as 900°C (1652°F).
