• Visible class II laser providing accurate and precise distance measurement.
• Operates off natural surfaces up to 30 meters (98.6 feet), off a white target at 100 meters (328 feet) and off a special reflector target at 150 meters (492 feet)
• Provides +/- 3mm to +/- 5mm accuracy (+/-0.118in to +/-0.197in)
• Operates from 10- 30 VDC Supply
• RS232 or Optional RS422/RS485 Serial Interface.
• Programmable 4 - 20mA Analog Output.
• Programmable Digital Output
• Programmable External Trigger Input.
• Programmable Zero Offset.
• Cast Aluminum Housing rated IP66, NEMA 4X plus Explosion Proof Class I, Groups B, C, D, Class II, Groups E, F, G, Class III, NEMA 7BCD and NEMA 9EFG
• Direct Replacement for the Moduloc Model LT2000-XT and Model LT20020-XT Laser Distance Measurement Sensors

Typical Applications

• Product Material: Length, width, level and position of product.
• Material Handling: Automated storage/retrieval systems and positioning of mobile equipment.
• Oil and Gas Industry: Positioning of moving equipment.
• Positioning of explosion proof cranes and crane trolleys.
• Collision Avoidance: Distance alarm between vehicles.

Description

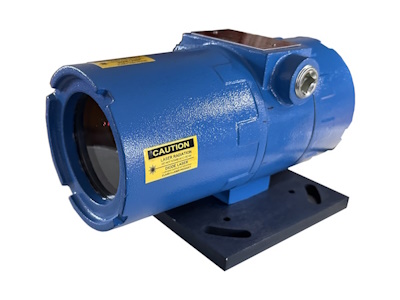

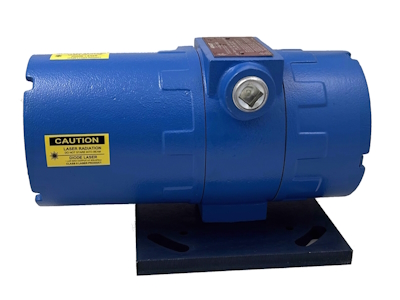

The MSE-XT2020 Laser Distance Measurement Sensor operates over a substantial range off static or passing product in difficult areas in harsh hazardous and outdoor environments. The MSE-XT2020 measures distances over a working range up to 30 meters (98.6 feet)  off of natural surfaces, up to 100 meters (328 fee) off of white surfaces and up to 150 meters (492 feet) off of a special reflector. For operation with automated positioning control of material handling transport systems a white reflective target is used or the special reflector is used.
