The following is specifications and dimensional information on the housing for the MSE-HMD85 Self Contained "All-in-One" Digital Hot Metal Detector.


The self-contained MSE-HMD85 Digital Hot Metal Detector in operation at a Hot Strip Mill.

The self-contained MSE-HMD85 Digital Hot Metal Detector in operation at a Hot Strip Mill with heavy steam.

The MSE-HMD85 Hot Metal Detector's electronic circuitry is packaged in a robust cast aluminum housing. The housing includes a large air cooled chamber which is separated from the electronic circuitry compartment. An air purge inlet is located in the rear of the cast aluminum housing. Pressurized air passes though this chamber, cooling the cast aluminum housing thus cooling the electronic circuitry. The air vents in the front of the housing via a slot in front of the lens providing air purging. Further cooling of the air can be accomplished with the use of an in-line vortex tube air cooler.

As an option, a sealed water coolant radiator & separate air purging facility can be provided. The copper water coolant radiator is mounted internal to the air cooled chamber. Coolant inlet and outlet fittings are provided in the rear of the cast aluminum housing. An air inlet is fitted in the front nozzle of the housing and air is vented out the front of the nozzle in front of the lens.

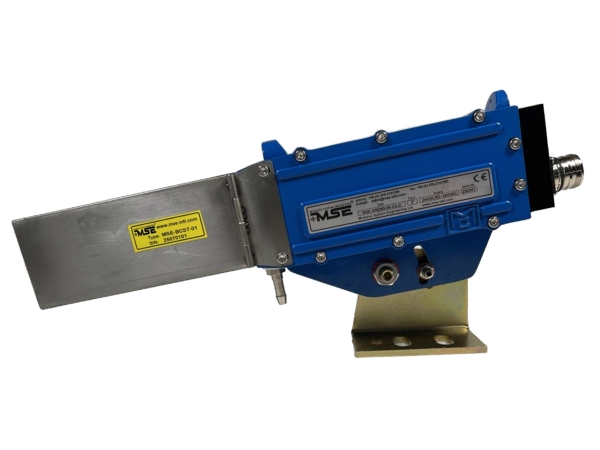

For severe environments an additional air purge nozzle can be fitted onto the front of the  MSE-HMD85 housing. The air purge nozzle is constructed of steel with zinc cadmium, coating and oven baked black paint for long life. This air purge nozzle is used to further direct the air purge and increase the pressure to clear steam and particulate from the lens. Is construction allows for easy attachment to the cast housing with only an Allen wrench. It has an extra tubing fitting if additional air purge is required in severe environments.




Housing Specifications
Housing
Aluminum AL6, Oven baked blue powder coat
Housing Rating
IEC IP66, DIN, 89011
Weight
without Cable: 2.5 Kg (5.5 lbs)
Electrical Box Connector
Circular, Plug/Socket, 16 Pin, Rated: IP66
Cable Length
2 m (6.6ft) standard. Also available in optional lengths of 5 m (16.4ft), 10 m (32.8ft), and 15m (49.2ft)
Cooling: Standard
Standard: -D Water cooled & Air Purged; Optional: -A Air Cooled & Air Purged

Housing Dimensions

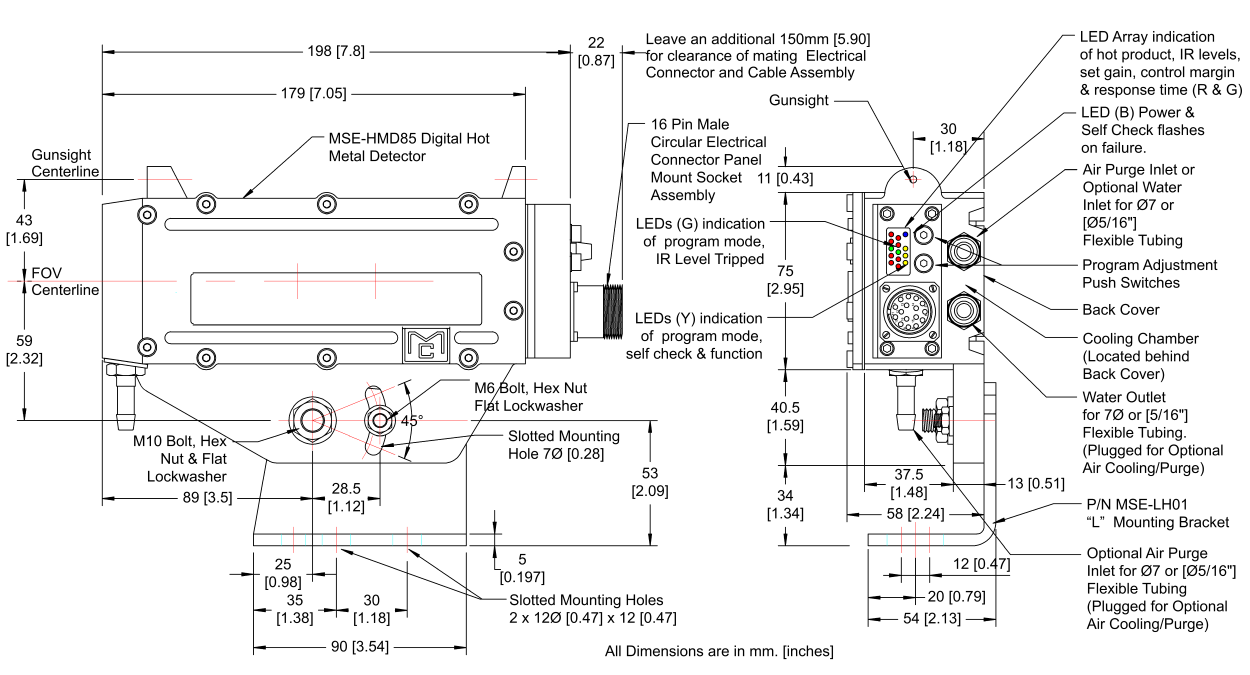

MSE-HMD85 Digital Hot Metal Detector Housing Dimensional Imformation

Air & Optional Water Specifications
Air Pressure
1 - 2 cu ft./min at 5 PSI for normal conditions, non-instrument dry air and 10 - 15 PSI for severe conditions
Water Pressure
1 - 2 Bar
Water Volume
Regulate between 0.5 - 1 liter/min.
Water Temperature
For Ambient Temperature up to +80°C (176°F) use industrial quality water below 25°C (77°F)
For Ambient Temperature above up to +120°C (250°F) use water chilled to 5°C (41°F)

Electrical Terminal Connections

Terminal Connections
Pin No.
Wire Color
Function
1
Pink
Self Check to + 24 VDC Supply
2
Red
 +24 VDC Supply
3
Black
80-240 VAC Supply (L1)
4
White
Supply Neutral (L2)
5
Violet
PNP Transistor Output (#2)
6
Bluet
0 VDC (For 24 VDC Supply
7
Green
Ground
8
Brown
Cradle Relay Output (#1) N.O. Contact
9
Orange or Grey Pink
Cradle Relay Output (#1) N.O. Contact
10
Light Blue or Red/Blue
NPN Transistor Output (#3)
11
Yellow
Optional Reed Relay Output (#4) N.O. Contact
12
Grey
Optional Reed Relay Output (#4) N.O. Contact



The MSE-HMD85 is a direct replacement for the MCSL Model MD8100 and Model MD85100 Hot Metal Detectors. Please contact us for additional information.
