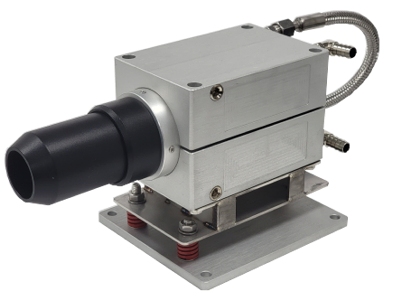

Model MSE-LT205VHT Laser Distance Measurement Sensor for Heavy Duty applications shown with water optional cooled jacket

The MSE-LT205VHT Laser Distance Measurement Sensor mounted on a supplied Horizontal Mounting Bracket and shown with an Optional Cooling Jacket and an optional Protective Extension Tube. The optional Cooling Jacket can be used with Vortex cooled air or chilled water.

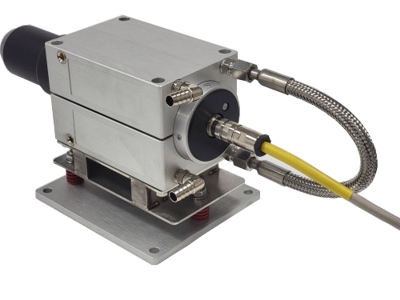

Model MSE-LT205VHT Laser Distance Measurement Sensor for Heavy Duty applications shown with water optional cooled jacket

Back view of the  MSE-LT205VHT Laser Distance Measurement Sensor mounted on a supplied Horizontal Mounting Bracket and shown with an  Optional Cooling Jacket and an optional Protective Extension Tube. The optional Cooling Jacket can be used with Vortex cooled air or chilled water.

MSE-LT205VHT Laser Distance Measurement Sensor for Measuring off Hot Surfaces as hot as 1200°C (2192°F)

Housing Technical Information

The following is specifications and dimensional information on the housing for the Moduloc MSE-LT205VHT  Laser Distance Measurement Sensor.

The standard  MSE-LT205VHT is provided in a heavy duty, mill duty, robust dust and waterproof protected IP66 housing. On the backside of the housing is mounted an IP66 rated 12 Pin M16 Male box connector.  The standard operating temperature range is -20°C (-4°F) to +50°C (122°F) an optional internal PTC heater is available for operation down to -40°C (-40°F).

An optional Cooling Jacket can be provided to allow operating temperature up to 100°C (212°F) using water chilled at -20°C (-4°F). Cooling can be accomplished with the use of an an optional in-line Vortex tube air cooler in place of water cooling to allow operating temperature up to 80°C (176°F).  An optional Modular Air Combination Unit is available that includes a pressure relief valve, an air filter with 5 μm filtration, a coalescing filter with 0.01 μm filtration and an adjustable pressure regulator.

Other optional accessories are available for the housing including a heat reflective shield, a Kevlar heat reflective protective cover, and a sun shield for outdoor applications.

The heat reflective protective cover is custom fabricated and is made with Eko-Therm™ aluminized Kevlar with high temperature construction and high temperature Velcro® closures. The cover provides a unique combination of thermal insulation and heat reflective qualities. It helps maintain cooling process line temperatures in high ambient conditions or alongside external radiating heat sources. The cover is constructed in 3 layers to provide maximum insulation properties to meet or exceed maximum temperature requirements

Other accessories include a wall mounting bracket, a front Protective Extension Tube, a front Protective Extension Tube with an air purge inlet, and a Long Extension tube to significantly reduce radiant IR interference, and a gray filter to limit sunlight that attaches to the front of the standard and the optional front extension tubes.

The standard the MSE-LT205VHT is supplied with a cable assembly which includes a mating M16, IP66 rated 12-pin female plug, and a 12 conductor color coded cable with flying leads. The standard cable length is 3 meters (9.8 FT). The cable assembly is also available in optional lengths of 5, 10 and 15 meters.

The MSE-LT205VHT  with its' heavy-duty, steel mill duty, robust IP66 housing is ideal for steel mill applications that require a very rugged housing for protection.

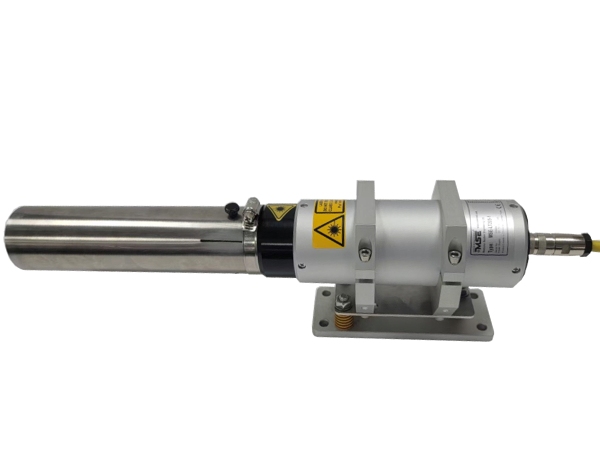

The MSE-LT205VHT Laser Distance Measurement Sensor mounted on a supplied Horizontal Mounting Bracket and shown with an Optional optional Long Extension Protective Tube. The Long Extension Tube is to significantly reduce radiant IR interference.
  The MSE-LT205VHT Laser Distance Measurement Sensor mounted on a supplied Horizontal Mounting Bracket and shown with an Optional Long Extension Protective Stainless Steel Tube. The Long Extension Tube is to significantly reduce radiant IR interference. There is also an Optional version of the Long Extension Protective Stainless Steel Tube that includes an air purge.



Housing Specifications
Housing Material
Aluminum AL6, Finish: Natural Anodized with stainless steel hardware
Housing Rating
 IEC IP66, DIN 89011
Weight
5.1 kg (11LBS)  without cable and with standard housing, standard mounting bracket, and front tube.
Front Tube Material
Aluminum, Finish: Black paint
Rear Cover Material
Aluminum, Finish: Black paint
Mounting Bracket Material
Aluminum, Finish: Natural Anodized with stainless steel hardware
Electrical Connection
Flange Mount Circular Connector, M16, 12-Pole, Male, Rated IP67
Cable Length:
3m (9.8 FT) Optional Lengths: 5m (16.4 FT),10m (32.8 FT), and 15m (49.2 FT)
Cable Part Number:
MSECBP10LXXLT205 Where XX = cable length of 03=3m, 05=5m, 10=10m, and 15=15m,  for use when the RS232 or RS422 or RS485 Serial Interface is supplied.

Housing Dimensions

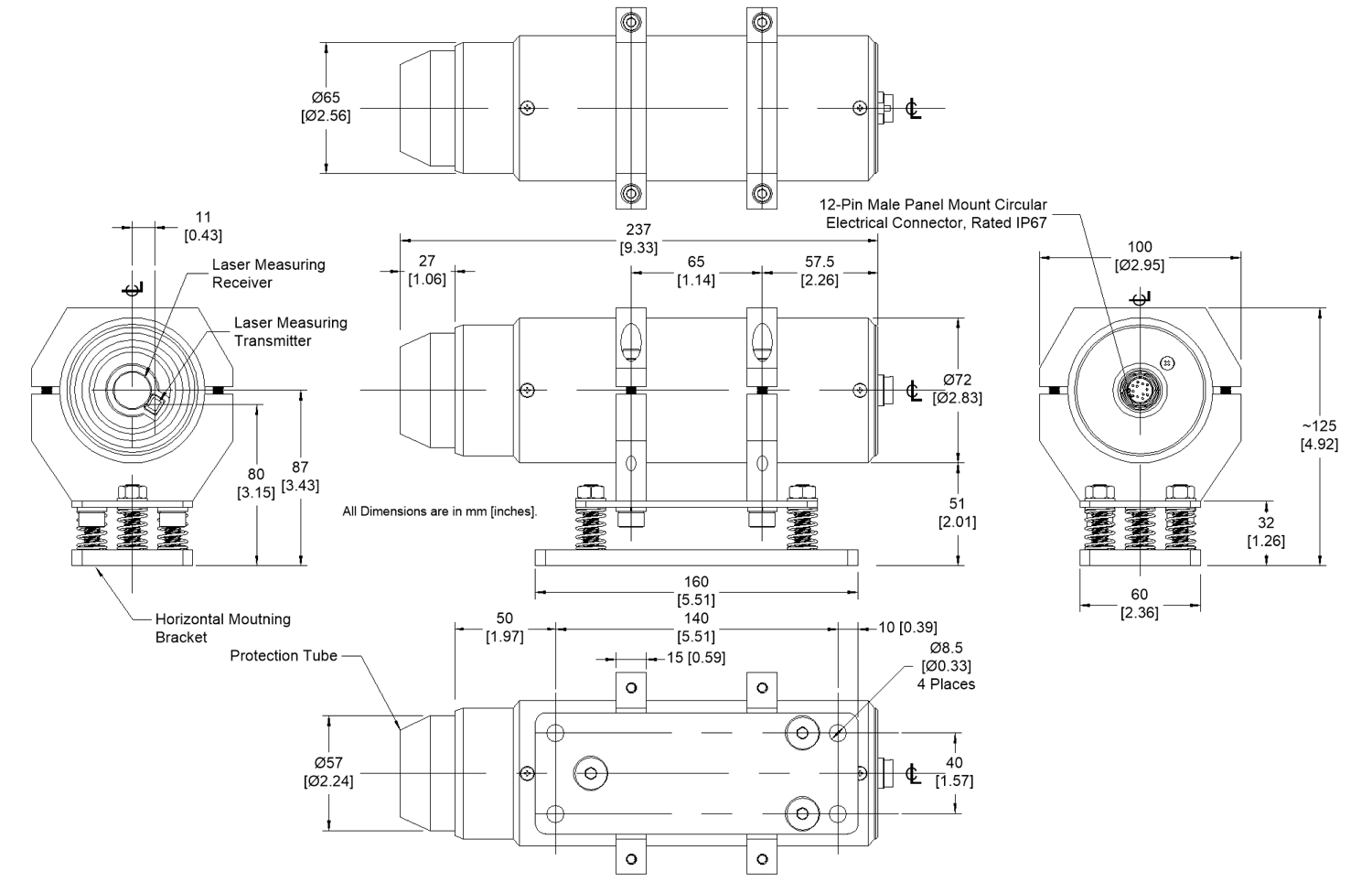

MSE-LT205VHT Laser Distance Measurement Sensor Housing Dimensional Imformation


The Housing Dimensional Drawing above shows the standard MSE-LT205VHT model with a standard front protective tube, a standard horizontal mounting bracket and with a standard 12-Pin Male Panel Mount Circular Electrical connector that is used for Serial Interface Models.
(Please contact us for dimensional drawings of other models with an optional accessory or with a FieldBus Inerface.)



Electrical Connection Information

Terminal Connections for Serial Interface Models
Pin No.
Wire Color
Designation
Function  if RS232
Function if RS422 or RS485
A
Green
TxD / RX+
RS232 send data
RS422 (RS485) receive data +
B
Yellow
RxD / RX-
RS232 receive data
RS422 (RS485) receive data
C
Brown
TRIG
External Trigger
External Trigger
D
Red
IOUT
Analog Current Output
Analog Current Output
E
Black
TX-
Not Used
RS422 (RS485) send data
F
Violet
TX+
Not Used
RS422 (RS485) send data +
G
Pink
VCC
Supply Voltage
Supply Voltage
H
White
ALARM
Digital switching output
Digital switching output
J
Gray
GND
Ground Potential (Signal)
Ground Potential (Signal)
K
No Connection
No Connection - Not Used
No Connection
No Connection - Not Used
L
Blue
GND
Ground Potential (Supply)
Ground Potential (Supply)
M
No Connection
No Connection - Not Used
No Connection
No Connection - Not Used
---
Yellow/Green
Shield
Shield/Screen
Shield/Screen




Part Number Specifications

Example #1: MSE-LT205VHT-1-H (Laser Distance Measurement sensor with RS232 Serial Interface, and with 24VDC Heater)
Example #2: MSE-LT205VHT-2 (Laser Distance Measurement sensor with RS422 Serial Interface)
Example #2: MSE-LT205VHT-3-W (Laser Distance Measurement sensor with RS485 Serial Interface and with cooling jacket)

Serial Interface::

-1

= RS232 Serial Interface (Standard)


-2

= RS422 Serial Interface (Optional)


-3

= RS485 Serial Interface (Optional)

Internal Heater:



= No Additional Suffix then Optional Heater is not included (Standard)


-H

= Internal 24 VDC PTC Heater is included (Optional)

Cooling Jacket:

-W

= Cooling Jacket to allow Water Cooling or Vortex Air Cooling (Optional)


NOTE: The Internal Heater is programmable and can be switched on and off between a temperature range of -40°C and 70°C (-40°F to 158°F) which is controlled by a programmable software parameter.



Please contact us for additional information on Model Numbers for other FieldBus Interface Options, water or vortex air cooling jacket options, air purging options, various extended front tube options, and front filter options.
