MSE-FMD95 Remote Fiber Digital Hot Metal Detector (HMD)
Hot Metal Detectors MSE-FMD95 Description Technical Info Housing Info Data Sheet Request More Info
MSE-FMD95 Remote Fiber Digital Hot Metal Detector (HMD) Signal Processor Controller shown with mounting cradle
The MSE-FMD95 Fiber Digital Remote Hot Metal Detector shown removed the protective mounting cradle.

Model MSE-FMD95 Remote Fiber Digital Hot Metal Detectors (HMD)

The following is specifications and dimensional information on the MSE-FMD95 Remote Fiber Digital Hot Metal Detector. The MSE-FMD95 utilizes a modular  Signal Process Controller, flexible armored fiber optic leads, and interchangeable remote lenses.

MSE-FMD95 Signal Processor Controller Housing Specifications
Housing
Aluminum AL6, Oven baked black powder coat
Housing Rating
IEC IP66, DIN, 89011
Weight
without Cable: 1.9 Kg (4.2 lbs)
Electrical Box Connector
Circular, Plug/Socket, 16 Pin, Rated: IP66
Cable Length
2 m (6.6ft) standard. Also available in optional lengths of 5 m (16.4ft), 10 m (32.8ft), and 15m (49.2ft)


MSE-FMD95 Signal Processor Controller Housing Dimensions

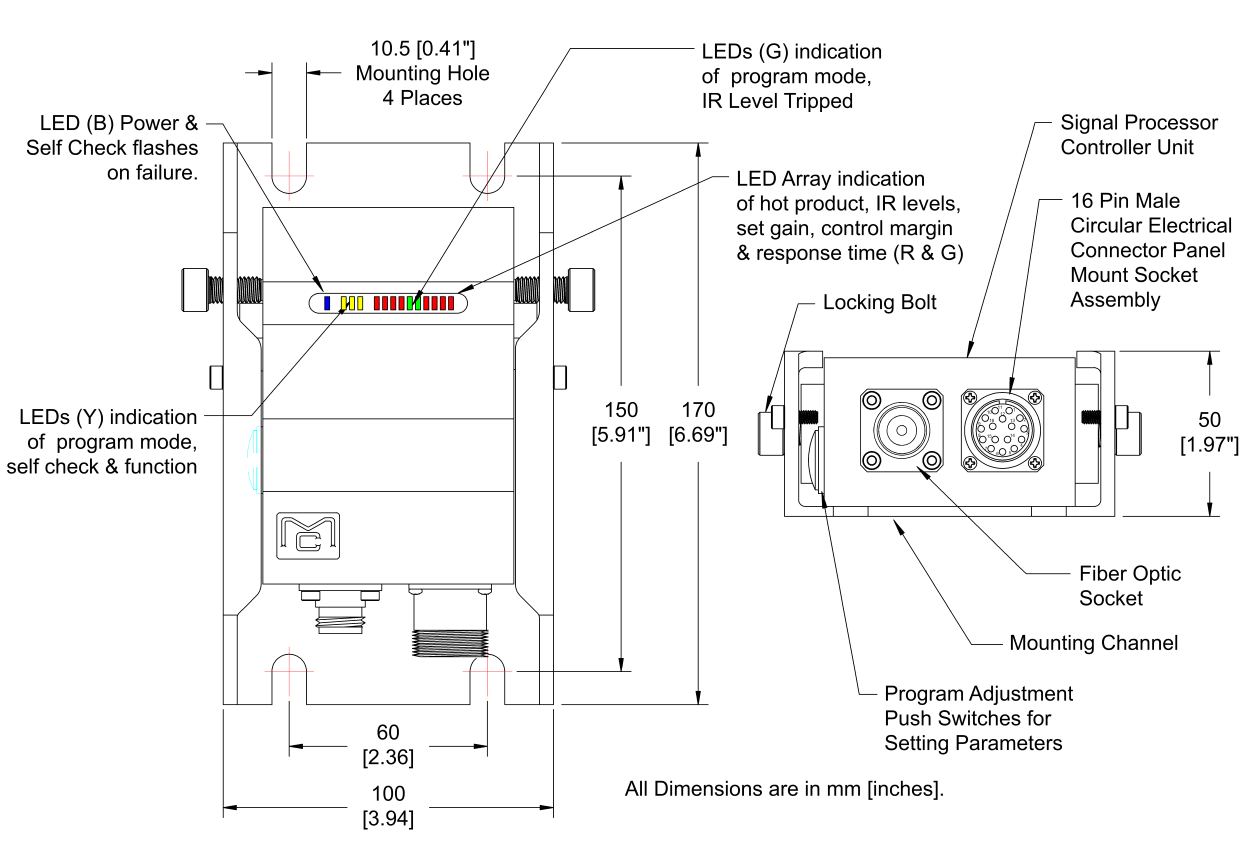

MSE-FMD95 Remote Fiber Digital Hot Metal DetectorSignal Processor Controller Housing Dimensional Imformation

The above drawing shows the dimensional information of the Signal Processor Controller Housing.



MSE-FMD95 Signal Processor Controller Electrical Terminal Connections
Terminal Connections
Pin No.
Wire Color
Function
1
Pink
Self Check to + 24 VDC Supply
2
Red
 +24 VDC Supply
3
Black
80-240 VAC Supply (L1)
4
White
Supply Neutral (L2)
5
Violet
PNP Transistor Output (#2)
6
Bluet
0 VDC (For 24 VDC Supply
7
Green
Ground
8
Brown
Cradle Relay Output (#1) N.O. Contact
9
Orange or Grey Pink
Cradle Relay Output (#1) N.O. Contact
10
Light Blue or Red/Blue
NPN Transistor Output (#3)
11
Yellow
Optional Reed Relay Output (#4) N.O. Contact
12
Grey
Optional Reed Relay Output (#4) N.O. Contact


The MSE-FMD95 is a direct replacement for the MCSL Model MD9100 and Model MD95100 Remote Hot Metal Detectors. Please contact us for additional information.
