MSE-D150 Laser Distance Measurement Sensor Technical Information Page

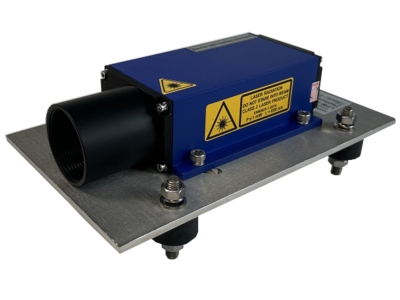

Model MSE-D150 Laser Distance Measurement Sensor Mounted on a LDMB-50 Mounting Platform with vibration mounts

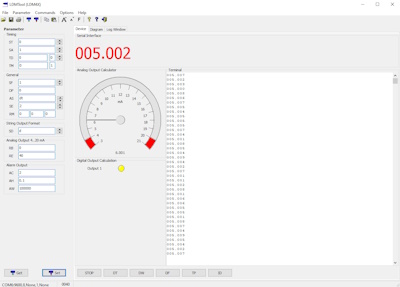

The LDMTool PC Software is included with the MSE-D150 Laser Distance
Measurement Sensor.

Additional Technical Information

The MSE-D150 Laser Distance Measurement Sensor is extremely versatile and can be programmed to operate in various distance measurements modes either remotely controlled or automatically, using a PC or a host computer or as a stand alone microprocessor device.

Distance measurement of the MSE-D150 can be controlled in these various modes of operation:

1. Manually with a PC using HyperTerminal, a terminal emulation program or the provided LDMTool software via the RS232 or the optional RS422/RS485 serial interface

2. Manually by transmitting ASCII characters via the RS232 or the optional RS422/RS485 serial interface from a PLC, a PC, a host computer or a stand alone microprocessor device.

3. Automatically as a stand alone device and programmed to start in the AutoStart mode.

4. Continuously by selecting distance tracking mode

5. Remotely controlled by using the external trigger

6. Remotely controlled via the serial interface

Distance measurement can be monitored in different ways:

1. Using the 4 - 20 mA Analog Output

2. Data transfer using the RS232 serial interface

3. Data transfer using the optional RS422/RS485 serial interface

4. Data transfer using the optional ProfiBus, Profinet or the Ethernet TCP/IP FieldBus Interface.

Specifications

Operating Range ¹⁾	Natural Surface: 0.2m (7.8in) to 30m (98ft) White Surface: 0.2m (7.8in) to >100m (328ft) Special Reflector: 2m (6.6ft) to >140m (460ft)	Supply Voltage	10-30 VDC
Operating Range ¹⁾		Power Consumption	2 Watts, 24 Watt with optional PTC Heater
Accuracy (according to surface reflectivity)	±3mm (0.118in) for 15°C (59°F) to 30°C (86°F) ±5mm (0.197in) over full operating temp. range	Operating Temperature	-20°C (-4°F) to +50°C (122°F) without cooling -40°C (-40°F) to +50°C (122°F) with optional internal 24 VDC PTC heater
Resolution	0.1mm user (programmable & scalable)	Humidity	Max 90% RH (non condensing)
Repeatability	±0.5mm (0.0197in)	Storage Temperature	-20°C (-4°F) to +50°C (122°F)
Scale (programmable)	Output can be m, cm, mm, yd, ft and inches	Serial Interface	-1 Standard: RS232 (2400 - 38,400 baud)
Measuring Time ²⁾ (according to type of surface reflectivity)	Any Surface: 240 ms to 6 sec (typically 240 ms)³⁾	Serial Interface	-2 Optional: RS422/RS485 (2400 - 38,400 baud)
	White Surface: 100 ms (in DW measuring mode)	Communication Protocol	Half Duplex via ASCII codes
	White Surface: 20 ms (in DX measuring mode)	Programming	via hyper-terminal or supplied PC software
Laser Wavelength	650nm, Visible Red	Optional FieldBus Interface ⁴⁾	ProfiBus DP
Laser Classification	Safety Class 2 (DIN EN 60825-1), Class II		ProfiNet
Laser Power	1 mW		Ethernet TCP/IP
Laser Divergence	0.6 mrad	Auto Distance Tracking	Can be programmed to start at power on
Laser Spot Diameter	6mm (0.236in) at 10m (32.8ft), 60mm (2.36in) at 100m (328ft)	Digital Output	High value output with adjustable threshold, logic and hysteresis. 0.5 A limit
MTTF	32,000 HRS	Analog Output	Programmable 4-20mA, 16 BIT (0.15%) with 500 ohm load resistance. Programmable zero and span. Temperature drift of < 50ppm/°C
Trigger Input	Programmable with delay & hi/lo adjustment	Analog Output

1) Ranges shown are for DT, DW and DM measurement mode. DS measuring mode has a range of 0.5M (19.7IN) to 7M (23FT)
2) Measuring Time can also be preset in intervals of 240 ms to 6 seconds in DT measuring mode and preset in intervals of 150 ms to 3.75 seconds in DS measuring mode
3) In DT and DS measurement mode
4) For FieldBus Interface Options - ProfiBus DP Interface, ProfiNet, and Ethernet Interface TCP/IP. Coming Soon:Ethernet/IP

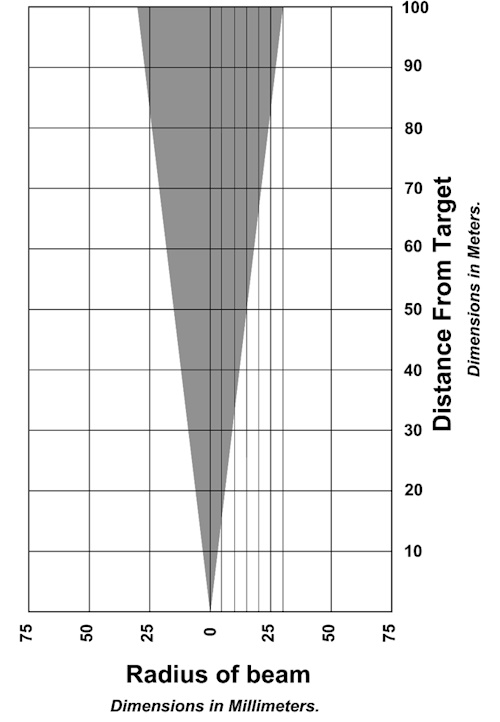

Laser Spot Diameter

Laser Beam Spot Diameter
DIstance (m)	Distance (ft)	Dia. (mm)	Dia. (in)
10	32.8	<ø6	ø0.236
50	164	<ø30	ø1.18
100	328	<ø60	ø2.36
150	492	<ø90	ø3.54

The MSE-D150 Laser Distance Measurement sensor is a direct replacement for the Moduloc Model LT2000-SO and the LT2020-SO. Please contact us for additional information or if you have a similar Model Number that you need pricing on or a replacement for.
