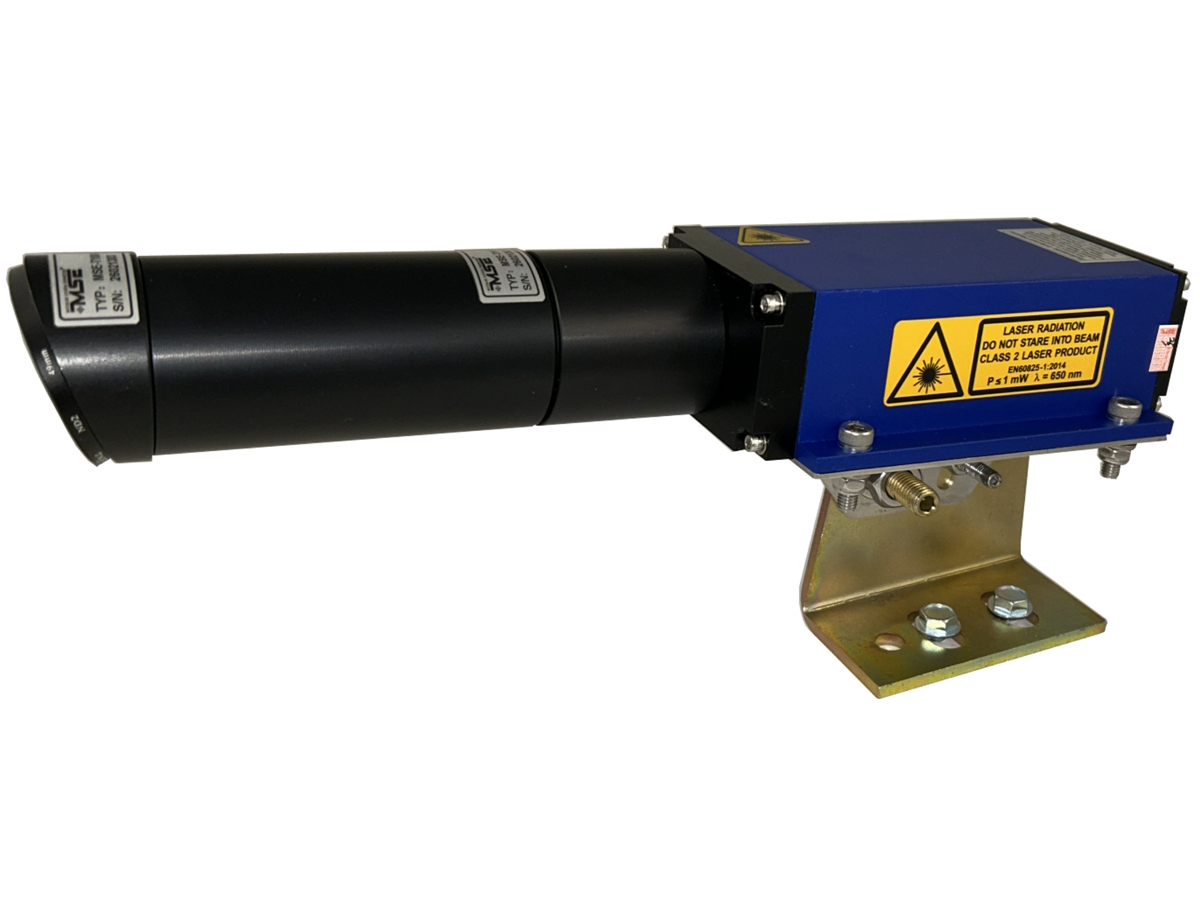

MSE-D150 Laser Distance Measurement Sensor
Laser Distance Measurement Sensors MSE-D150 Description Technical Info Housing Info Data Sheet Request More Info

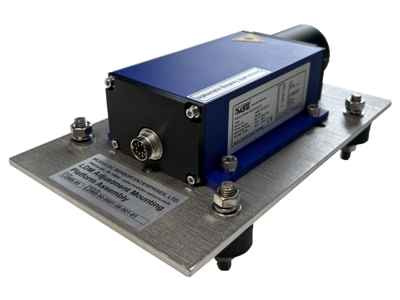

Back view of the MSE-D150 Laser Distance Measurement Sensor showing the rear flange mount connector.

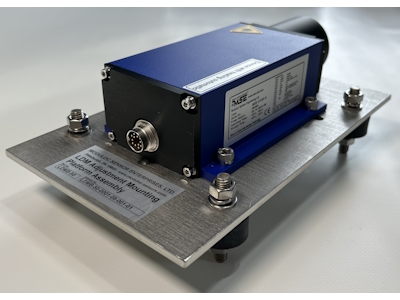

The back view of the MSE-D150 Laser Distance Measurement Sensor mounted on a LMDB-50 Mounting Platform showing the rear flange mount connector..

Housing Technical Information

The MSE-D150 Laser Distance Measurement Sensor comes with an anodized extruded aluminum housing with a blue powder coated finish and has an IP65 Rating. Mounting Hardware is provided.

The standard MSE-D150 is provided with a rear mounted 2-Pole M18 Flange Mount circular electrical connector (Binder Series 723).

The MSE-D150 is provided with a mating cable assembly, Part No. MSECBP10L02D150. The cable assembly consists of a prewired mating connector plug (Binder Series 423) and a 2m length of 12 conductor cable (12x0.3mm2) with overall shield. The cable assembly is also available in optional lengths of 5m, 10m and 15m.

Accessories

Part Number LDMB-50 Mounting Platform provides a solid mounting base for mounting the MSE-D150 for applications where vibration is prevalent. The mounting platform provides the laser with +/- 15 horizontal swivel to aid in alignment to the target. The mounting platform includes shock mounts.




Housing Specifications
Housing Material
Aluminum, anodized and blue powder coated
Housing Rating
 IEC IP65, DIN 89011
Weight
850 g (1.9LB)
Electrical Connection
12-Pole M18 Flange Mount connector (Binder Series 723)
Operating Temperature
-20°C (-4°F) to +50°C (122°F)
-40°C (-40°F) to +50°C (122°F) with optional internal 24 VDC PTC Heater
Storage Temperature
-20°C (-4°F) to +70°C (158°F)

Housing Dimensions

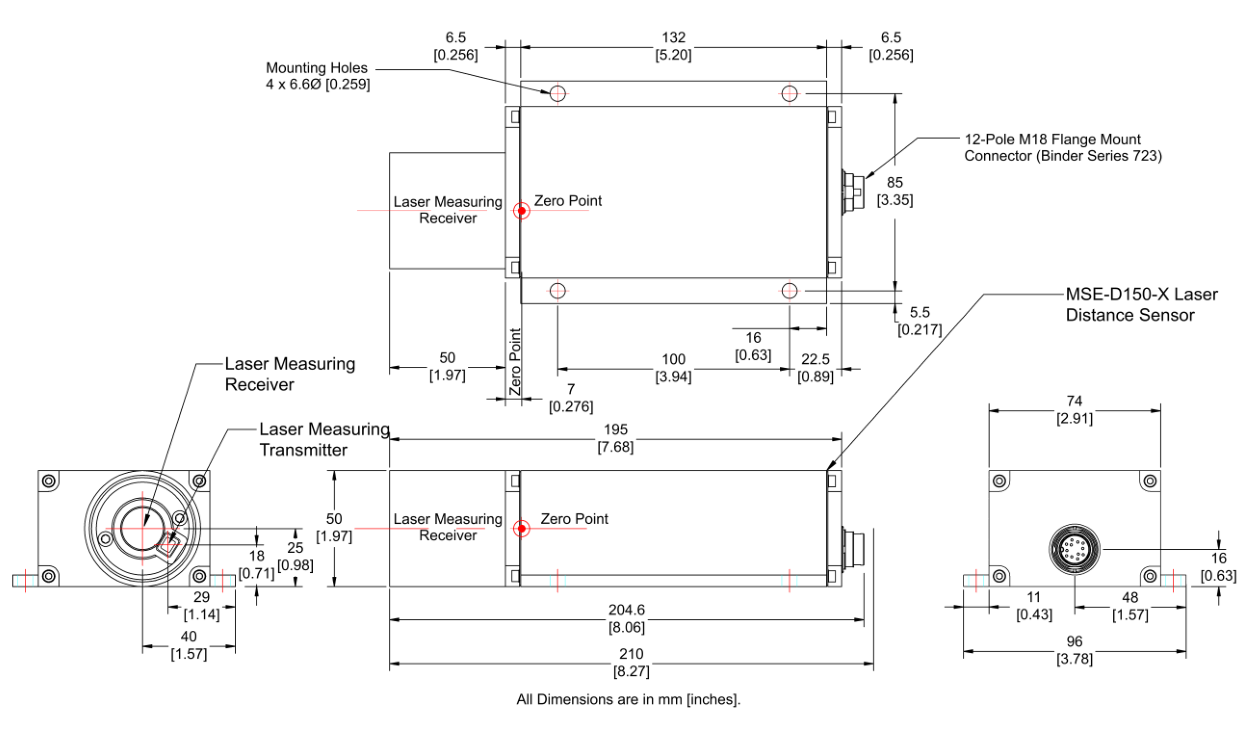

MSE-D150 Laser Distance Measurement Sensor Housing Dimensional Imformation



Electrical Connection Information

Terminal Connections
Pin No.
Wire Color
Designation
Function  if RS232
Function if RS422/RS485
A
Green
TxD / RX+
RS232 send data
RS422 receive data +
B
Yellow
RxD / RX-
RS232 receive data
RS422 receive data
C
Brown
TRIG
External Trigger
External Trigger
D
Red
IOUT
Analog Current Output
Analog Current Output
E
Black
TX-
Not Used
RS422 send data +
F
Violet
TX+
Not Used
RS422 send data
G
Orange
VCC
Supply Voltage
Supply Voltage
H
White
ALARM
Digital switching output
Digital switching output
J
Gray
GND
Ground Potential (Signal)
Ground Potential (Signal)
L
Blue
GND
Ground Potential (Supply)
Ground Potential (Supply)




Part Number Specifications

Example #1: MSE-D150-1-H
(RS232 Serial Interface with 24VDC Heater)
Example #2: MSE-D150-2
(RS422 Serial Interface)

Serial Interface::

-1

= RS232 Serial Interface


-2

= RS422 Serial Interface

Internal Heater:



= No Additional Suffix then Optional Heater is not included


-H

= Optional Internal 24 VDC PTC Heater is included


Please contact us for additional information on Model Numbers for other FieldBus Interface Options.


The MSE-D150 Laser Distance Measurement sensor is a direct replacement for the Moduloc Model LT2000-SO and the LT2020-SO. Please contact us for additional information or if you have a similar Model Number that you need pricing on or a replacement for.
