• Visible class IIIR (3R) laser providing accurate and precise distance measurement.
• Operates off natural surfaces up to 20 meters (65.6 feet) off hot material up 1200°C (2192°F)
• Provides +/- 1mm to +/- 2mm accuracy (+/-0.039in to +/-0.079in)
• Operates from 10- 30 VDC Supply
• RS232 Serial Interface or Optional RS422/RS485 Serial Interface.
• Optional ProfiBus, ProfiNet or Ethernet TCP/IP Interface is also available.
• Programmable 4 - 20mA Analog Output.
• Programmable Digital Output
• Programmable External Trigger Input.
• Programmable Zero Offset.
• Cast aluminum housing rated IP66.
• Mounting Brackets and Mounting Platforms are available.
• Optional Internal 24VDC Heater for operation down to -40°C (-40°F)
• Robust cast aluminum housing rated IP66 with unique integral air purge & air cooling facility.
• Optional water cooling with separate air purge is also available.
• Possible Direct Replacement for the Model LT2000, LT2000P, LT2000-ST, LT2000-HT, LT2020-ST and LT2020-HT Laser Distance Measurement Sensors

Typical Applications

• Product:  Material Length, width, level and position of hot product.
• Metals Industry: Measure/position hot slab, billet, bloom or bar, Hot Slab Width Measurement, Hot Slab Length Measurement, Hot Slab Thickness Measurement up to 1200°C (2192°F).

Description

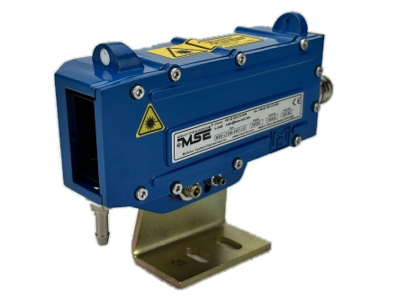

The MSE-LT50VHT Laser Distance Measurement Sensor operates over a substantial range off static or passing hot material or  product in difficult areas in harsh hazardous and outdoor environments. The MSE-LT150VHT measures distances over a working range up to 20 meters off of hot natural surfaces that are as hot as 1200°C (2092°F).
