MSE-LP600 Digital Optical Position Loop Scanner (Looper)

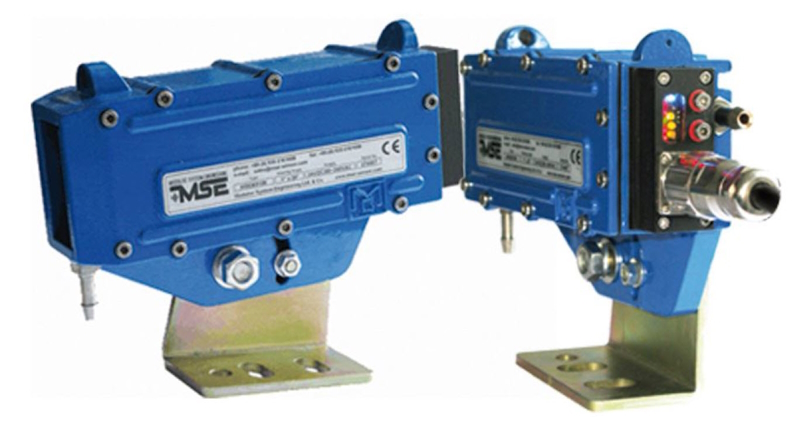

MSE-LP600 Digital Loop Scanner
Digital Optical Position Looper Scanner



The following is Technical Information for the MSE-LP600 Digital Optical Position Loop Scanner (Looper).



Specifications
Analog Output:
0 - 10 VDC Standard
(optional 4-20mA)
Product Temperature:
Minimum 350°C (662°F)
Maximum 1200°C (2192°F)
Linear Resolution:
±0.2% of full scale
Supply Voltage
Standard: -96 24 VDC ± 10%
Response Time:
10 ms
Power Consumption
2 Watts
Scanning Angle (FOV).
Standard: 3° x 30° Rectangular
Operating Temperature
-20°C (-4°F) to +50°C (122°F) without cooling
-20°C (-4°F) to +60°C (140°F) with air cooling
to +80°C (176°F) with water cooling chilled at ≤20°C
Higher temperature operation is possible using special
cooling protection and heat shield.
Sensing Element:
Electronically Scanned InGaAs 20 Photodiode Array
Array Scan Rate:
2 ms
Detection Technique
Differential comparison of background & hot product.
Automatic Gain:
Operating via Edge Control Margin Evaluation
Humidity
Max 90% RH (non condensing)
Power Indication:
Blue LED, flashes in Self-Check Fault
Storage Temperature
-20°C (-4°F) to +50°C (122°F)
Product Position Display:
10 Red LED Array Rear Bar Display
Output (#1)
Cradle Relay Output, SPNO, 240VAC, 8A with 20 ms response time.
Remote Self-Check:
Remotely Energized and Middle Yellow LED's
Output (#2)
Opto-isolated NPN Output 30 VDC, 150 mA, 200mW, 2
ms response, Not reversed protected
Automatic Self-Check:
At Start-up and continuous
Output (#3)
NPN & PNP Outputs 400 mA, 45 VDC, 2A Peak, Reverse and thermal protected


Typical Hot Background Signal Typical Signal with Passing Hot Bar

Typical Hot Background Signal of the MSE-LP600 Digital Optical Position Loop Scanner (Looper)

                Typical Signal with Passing Hot Bar of the MSE-LP600 Digital Optical Position Loop Scanner (Looper)
Chart illustrating signal from typical hot background This chart illustrates the control margin. Where the background IR is uniform
then the control margin can be set to a lower figure. Any hot product passing
needs to give a signal that exceeds the set point.

Performance
Model No.
MSE-LP600
Horizontal Field of View
30°
Horizontal Resolution
40 Bits
Vertical Field of View
3°
Reproducibility
Resolution


Typical Applications

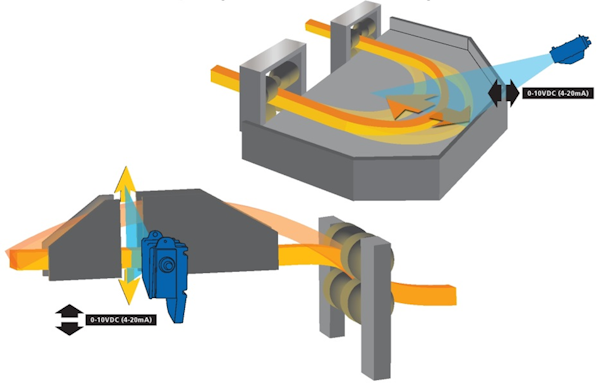

MSE-LP600 shown in Typical applications of horizontal and vertical loop control monitoring the position of hot bar
MSE-LP600 shown in Typical applications of horizontal and vertical loop control monitoring the position of hot bar



MSE-LP600 Part Number Specifications

Example #1: MSE-LP600-96-6-D
(24VDC Supply Voltage, Optional 4-20mA Analog Output, Water Cooled and Air Purged Housing

Supply Voltage::

-96

= 24 VDC ±15% (Standard)

Analog Output:

-6

= 4-20mA (Optional)


-7

= 0-10VDC (Standard)

Housing:

-D

= Water Cooled with Separate Air Purging Facility (Standard)


The MSE-LP600 Digital Optical Position Loop Scanner is a direct replacement for the MCSL Model DTF6015 Trailfinder Optical Position Loop Scanner. Please contact us for additional Moduloc replacement part numbers and information.
