MSE-LD20HR Laser Distance Measurement Sensor Technical Page

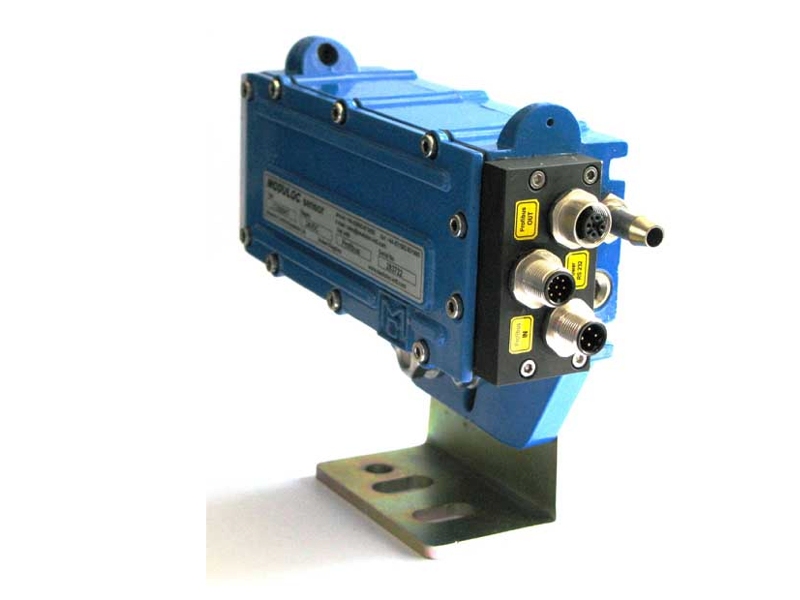

Model MSE-LD20HR-PB Laser Distance Measurement Sensor with ProfiBus Interface shown mounted on a MSE-LH01 "L" Mounting Bracket

The LDMTool PC Software is included with the MSE-LD20HR Laser Distance Measurement Sensor.

MSE-LD20HR Laser Distance Measurement Sensor for Measuring off Hot Seamless Rolled Steel Rings from 600°C (1112°F) to 1200°C (2192°F)

Additional Technical Information

The MSE-LD20HR Laser Distance Measurement Sensor is extremely versatile and can be programmed to operate in various distance measurements modes either remotely controlled or automatically, using a PC or a host computer or as a stand alone microprocessor device. The MSE-LD20HR is provided with LDMTool PC software that allows the user to communicate with the laser via a serial link and to set the lasers various parameters.

Distance measurement of the MSE-LD20-HR can be controlled in these various modes of operation:

1. Manually with a PC using HyperTerminal, a terminal emulation program or the provided LDMTool software via the RS232 or the optional RS422/RS485 serial interface

2. Manually by transmitting ASCII characters via the RS232 or the optional RS422 or optional RS485 serial interface from a PLC, a PC, a host computer or a stand alone microprocessor device.

3. Automatically as a stand alone device and programmed to start in the AutoStart mode.

4. Continuously by selecting distance tracking mode

5. Remotely controlled by using the external trigger

6. Remotely controlled via the serial interface

Distance measurement can be monitored in different ways:

1. Using the 4 - 20 mA Analog Output

2. Data transfer using the RS232 serial interface

3. Data transfer using the optional RS422 or optional RS485 serial interface

4. Data transfer using the optional ProfiBus, Profinet or the Ethernet TCP/IP FieldBus Interface.

Optional ancillary equipment include an external ProfiBus DP Gateway Interface Box, an external ProfiBus DP interface box, an external ProfiNet interface box, an external DeviceNet interface box, an external Ethernet TCP/IP interface box, an external Ethernet/IP Interface box, various Junction Boxes, and AC to DC Power Supplies. Also available is an HMI/Controller that allows connection and communication with one (1) or two (2) MSE-LD20HR Laser Distance Measurement Sensors for programming and displaying of distance measurement, length measurement, product presence. or product position, and with (2) lasers connected can be used to calculate and display the width, length or thickness of hot or cold product.

The MSE-LD20HR Laser Distance Measurement Sensor operates up to a 20m ((65.6 ft) range off static or passing hot steel seamless rolled ring in difficult areas and in harsh hazardous environments. The MSE-LD20HR measures distances off of hot natural surfaces that are as hot as 1200°C (2192°F).

Specifications

Operating Range ¹⁾	Natural Surface: up to 20m (65.6ft)	Supply Voltage	10-30 VDC
Operating Range ¹⁾	Natural Surface: up to 20m (65.6ft)	Power Consumption	<1.5 Watts, 24 Watt with optional PTC Heater
Accuracy (according to surface reflectivity)	±1mm (0.039in) for 15°C (59°F) to 30°C (86°F) ±2mm (0.079in) over full operating temp. range	Operating Temperature	-20°C (-4°F) to +50°C (122°F) without cooling -40°C (-40°F) to +50°C (122°F) with optional internal 24 VDC PTC heater -20°C (-4°F) to +60°C (140°F) with air cooling to +80°C (194°F) with water cooling chilled at 20°C
Hot Ring Temperature Range	600°C (1112°F) to 1200°C (2192°F)	Operating Temperature
Resolution	0.1mm user (programmable & scalable)	Humidity	Max 90% RH (non condensing)
Repeatability	±0.5mm (0.0197in)	Storage Temperature	-20°C (-4°F) to +50°C (122°F)
Scale (programmable)	Output can be m, cm, mm, yd, ft and inches	Serial Interface	-1 Standard: RS232 (2400 - 38,400 baud)
Auto Distance Tracking	Can be programmed to start at power on		-2 Optional: RS422 (2400 - 38,400 baud)
Measuring Time ²⁾ (according to type of surface reflectivity)	240 ms to 6 sec (typically 240 ms)³⁾		-3 Optional: RS485 (2400 - 38,400 baud) ⁵⁾
		Communication Protocol	Half Duplex via ASCII codes
		Programming	via hyper-terminal or supplied PC software
Laser Wavelength	650nm, Visible Red	Optional FieldBus Interface ⁴⁾	-PB ProfiBus DP⁴⁾
Laser Classification	Safety Class 2 (DIN EN 60825-1), Class II		-PN ProfiNet⁴⁾
Laser Power	≤ 5 mW		-EN Ethernet TCP/IP⁴⁾
Laser Divergence	0.6 mrad		-EP Ethernet/IP⁴⁾ (coming soon)
Laser Spot Diameter	<12mm (0.47in) at 20m (65.6ft) <3mm (0.157in) at 3 m (9.8ft) and below	Digital Output	High value output with adjustable threshold, logic and hysteresis. 0.5 A limit
MTTF	32,000 HRS	Analog Output	Programmable 4-20mA, 16 BIT (0.15%) with 500 ohm load resistance. Programmable zero and span. Temperature drift of < 50ppm/°C
Trigger Input	Programmable with delay & hi/lo adjustment	Analog Output

1) Ranges shown are for DT, DW and DM measurement mode. DS measuring mode has a range of 0.5M (19.7IN) to 7M (23FT)
2) Measuring Time can also be preset in intervals of 240 ms to 6 seconds in DT measuring mode and preset in intervals of 150 ms to 3.75 seconds in DS measuring mode
3) In DT and DS measurement mode
4) For FieldBus Interface Options - ProfiBus DP Interface, ProfiNet, and Ethernet Interface TCP/IP. Coming Soon:Ethernet/IP
5) The RS485 Serial Interface allows up to 32 sensors, each with a unique address to be connected in a multi-drop network arrangement.

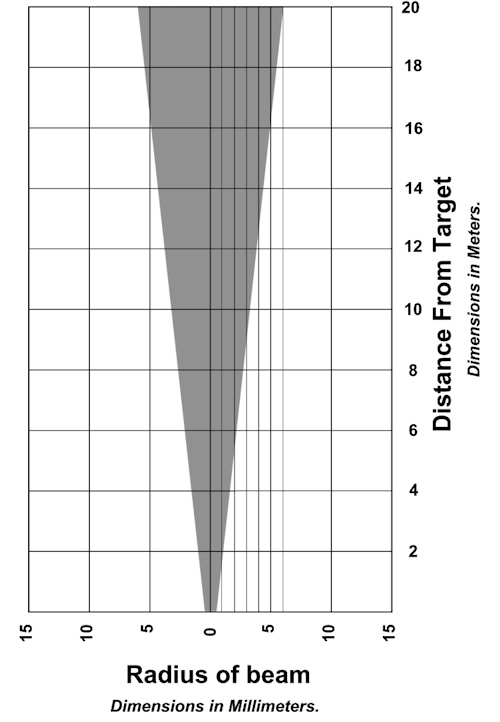

Laser Spot Diameter

Laser Beam Spot Diameter
DIstance (m)	Distance (ft)	Dia. (mm)	Dia. (in)
3	9.84	<ø4	<ø
10	32.8	<ø6	ø0.236
